Omschrijving

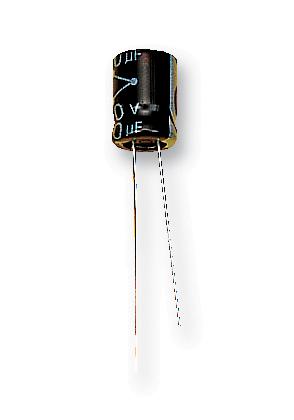

MULTICOMP PRO - MCGPR16V228M13X21 - Electrolytic Capacitor, 2200 µF, 16 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar
- Capacitance: 2200µF
- Voltage Rating: 16V
- Product Range: MCGPR Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 13mm
- Lead Spacing: 5mm
- Height: 21mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: 0.1583ohm
- Automotive Qualification Standard: -
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 21mm
- Lead Diameter: 0.6mm
- Leakage Current: 8.28µA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 16V
