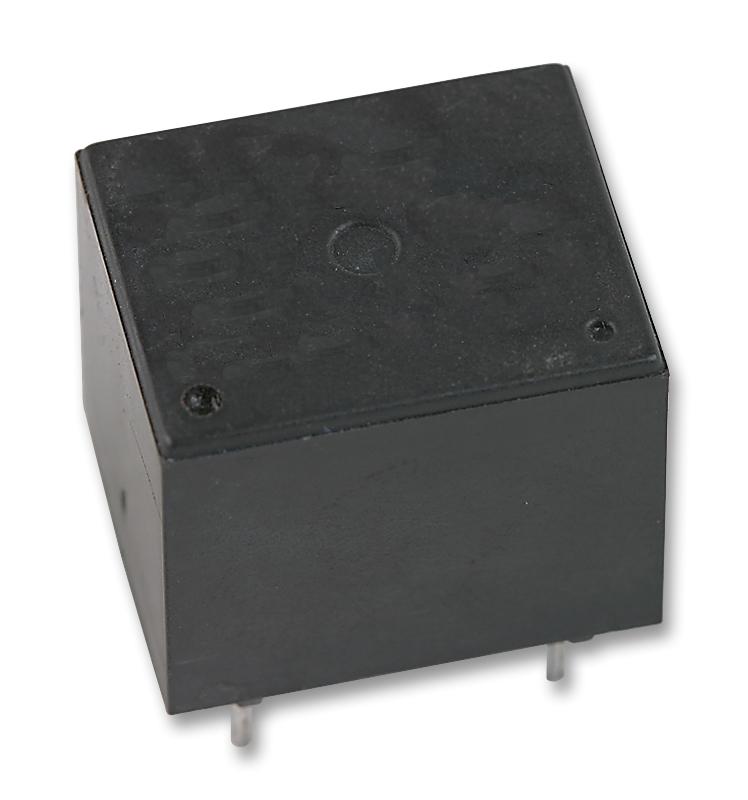

MCHRS4FH-S-DC12V-C Relay, SPDT, 250VAC, 30Vdc, 10A multicomp Pro

MULTICOMP PROSKU:MCHRS4FH-S-DC12V-C Bestelcode:1695973

Prijs:
Actie prijs€3,64

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1432 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCHRS4FH-S-DC12V-C - General Purpose Relay, MCHRS4F Series, Power, SPDT, 12 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 10A
  • Product Range: MCHRS4F Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 400ohm
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 360mW
  • External Depth: 15.5mm
  • External Height: 15.8mm
  • External Length / Height: 15.8mm
  • External Width: 19mm
  • Nom Operating Power: 360mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 10ms
  • Relay Type: Power
  • Release Time: 5ms
