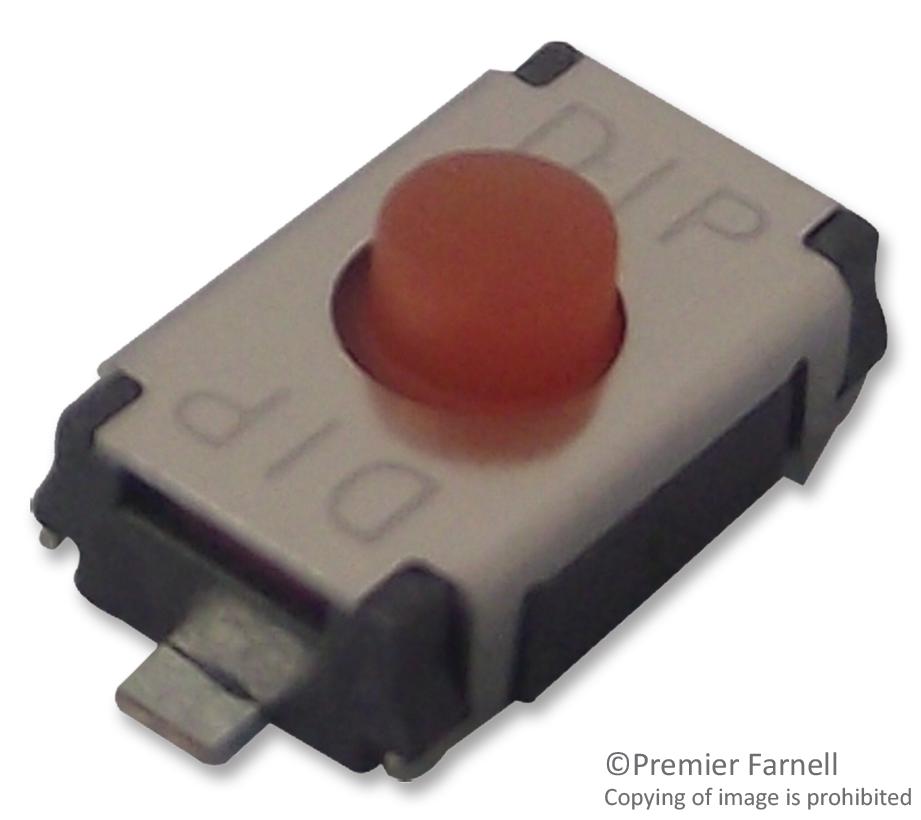

MULTICOMP PRO - MCIPTG23K-V - Tactile Switch, MCIPT, Top Actuated, Surface Mount, Oval Button, 160 gf, 50mA at 12VDC
- Product Range: MCIPT Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Oval Button
- Actuating Force: 160gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 3.8mm x 2.8mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Top
- Contact Configuration: SPST
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Nom: 12V
- Operating Force: 160gf
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Switch Terminals: Solder
