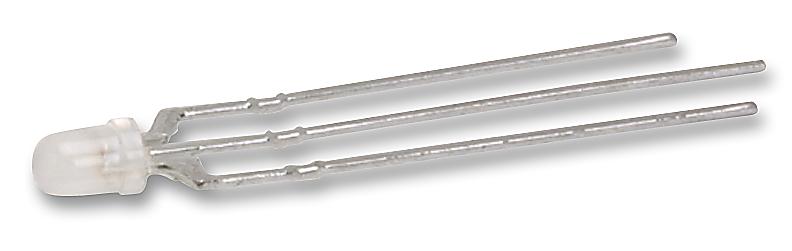

MCL034AT LED, 3mm, 32°, Orange multicomp Pro

MULTICOMP PROSKU:MCL034AT Bestelcode:1581126

Prijs:
Actie prijs€0,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1135 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCL034AT - LED, Orange, Through Hole, T-1 (3mm), 20 mA, 2 V, 625 nm

  • LED Colour: Orange
  • LED Mounting: Through Hole
  • LED Case Size: T-1 (3mm)
  • Forward Current If: 20mA
  • Forward Voltage: 2V
  • Wavelength Typ: 625nm
  • Luminous Intensity: 35mcd
  • Viewing Angle: 36°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: T-1 (3mm)
  • Current Rating: 20mA
  • Dominant Wavelength: 625nm
  • Dominant Wavelength Typ: 625nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Luminous Intensity Max: 60mcd
  • Luminous Intensity Min: 20mcd
  • Luminous Intensity Typ: 35mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Peak Wavelength: 635nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 1.6V
  • Voltage Vf Typ: 2V
