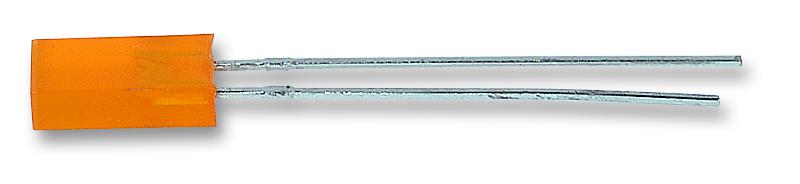

MCL453BD LED, 2MMX5MM, 120°, Amber multicomp Pro

MULTICOMP PROSKU:MCL453BD Bestelcode:1581155

Prijs:
Actie prijs€0,25

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2828 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCL453BD - LED, Amber, Through Hole, 2mm x 5mm, 20 mA, 2.1 V, 606 nm

  • LED Colour: Amber
  • LED Mounting: Through Hole
  • LED Case Size: 2mm x 5mm
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 606nm
  • Luminous Intensity: 3.6mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current Rating: 20mA
  • Dominant Wavelength: 606nm
  • Dominant Wavelength Typ: 606nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 2mm x 5mm
  • LED Type: Standard
  • Luminous Intensity Max: 3.9mcd
  • Luminous Intensity Min: 1.3mcd
  • Luminous Intensity Typ: 3.6mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Peak Wavelength: 610nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 1.7V
  • Voltage Vf Typ: 2.1V
