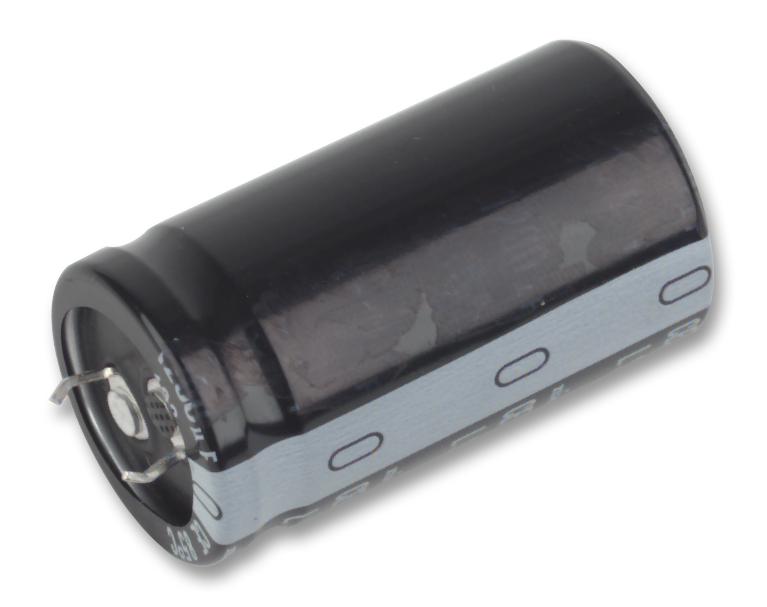

MULTICOMP PRO - MCLPR100V688M35X58 - Electrolytic Capacitor, Snap-in, 6800 µF, 100 V, ± 20%, Snap-In, 2000 hours @ 85°C
- Capacitance: 6800µF
- Voltage Rating: 100V
- Product Range: LPR Series
- Lifetime @ Temperature: 2000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 35mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 58mm
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 58mm
- Operating Temperature Range: -40°C to +85°C
- Ripple Current AC: 4.85A
