MCNP35V106M5X11 Cap, 10µF, 35V, 20% multicomp Pro

MULTICOMP PROSKU:MCNP35V106M5X11 Bestelcode:1236669

Prijs:
Actie prijs€0,19

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8636 units)

Documenten en downloads

Omschrijving

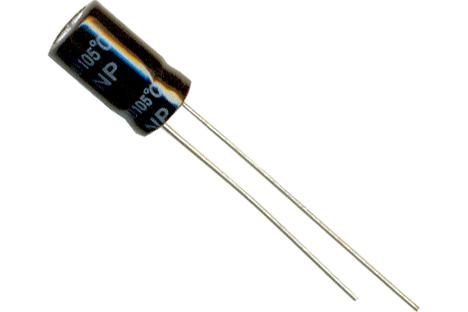

MULTICOMP PRO - MCNP35V106M5X11 - Electrolytic Capacitor, 10 µF, 35 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Bi-Polar [Non-Polar]

  • Capacitance: 10µF
  • Voltage Rating: 35V
  • Product Range: MCNP Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 5mm
  • Lead Spacing: 2mm
  • Height: 11mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 2000 hours @ 85°C
  • ESR: -
  • Automotive Qualification Standard: -
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Application: Bipolar
  • External Length / Height: 11mm
  • Lead Diameter: 0.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 2000h
  • Ripple Current AC: 40mA
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 35V
