Omschrijving

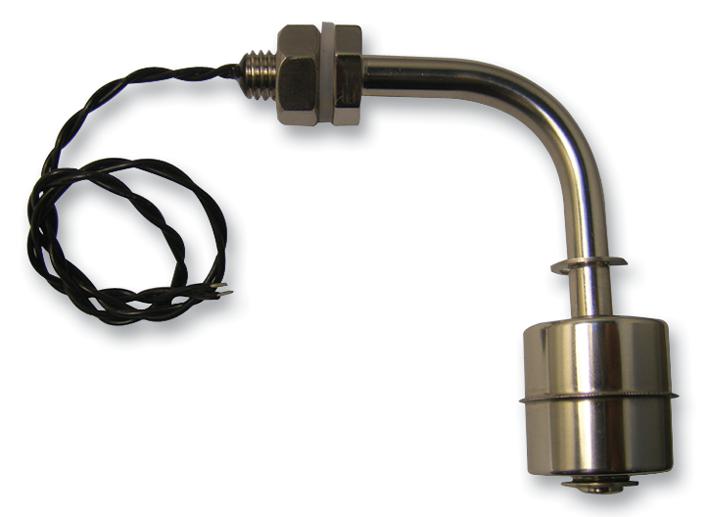

MULTICOMP PRO - MCPLS-080A-6VAL - Float Switch, MCPLS Series, Vertical, Side Mount, SPST-NO, Stainless Steel, 250 Vac, 28.4mm Diameter
- Operating Pressure Max: 10bar
- Sensor Body Material: Stainless Steel
- Output Current: 500mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- AC Power: 70VA
- Body Material: Stainless Steel
- Case Material: Stainless Steel
- Contact Configuration: SPST-NO
- Contact Current AC Max: 500mA
- Contact Voltage AC Max: 300V
- Contact Voltage DC Max: 350V
- DC Power: 50W
- External Length / Height: 85mm
- Float Diameter: 28.4mm
- IP / NEMA Rating: IP67
- Material: SUS304
- Operating Pressure Range: 0bar to 10bar
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Pressure Max: 10bar
- Thread Size: M10
