MCPTF-V Switch, SPST, 0.05A, 12VDC, SMD multicomp Pro

MULTICOMP PROSKU:MCPTF-V Bestelcode:1316979

Prijs:
Actie prijs€0,88

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (46674 units)

Documenten en downloads

Omschrijving

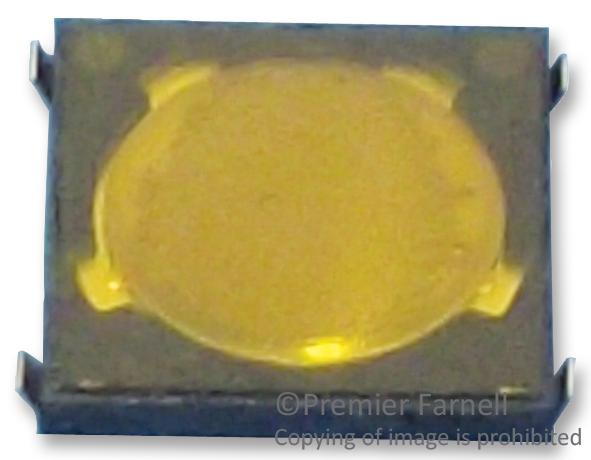

MULTICOMP PRO - MCPTF-V - Tactile Switch, MCPT, Side Actuated, Surface Mount, Rectangular Button, 220 gf, 50mA at 12VDC

  • Product Range: MCPT Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: SMD
  • Actuator Style: Rectangular Button
  • Actuating Force: 220gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 4.7mm x 3.5mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Side
  • Contact Configuration: SPST-NO
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 12V
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Operating Force: 220gf
  • Operating Force Max: 300gf
  • Operating Force Min: 150gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Switch Terminals: Solder
