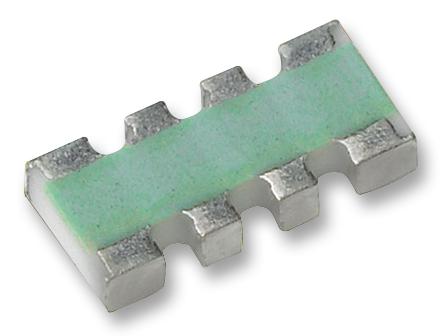

MCRE000217 Resistor Array, 0804, 10K multicomp Pro

MULTICOMP PROSKU:MCRE000217 Bestelcode:1711701

Prijs:
Actie prijs€0,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (48503 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCRE000217 - Fixed Network Resistor, 10 kohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 1%

  • Resistance: 10kohm
  • Product Range: -
  • No. of Elements: 4Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: 0804 [2010 Metric]
  • No. of Pins: 8Pins
  • Voltage Rating: 25V
  • Power Rating per Element: -
  • Resistance Tolerance: ± 1%
  • Temperature Coefficient: ± 200ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 1mm
  • External Length / Height: 0.45mm
  • External Width: 2mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 62.5mW
  • Resistance R1: 10kohm
  • Resistor Element Material: Thick Film
  • Resistor Mounting: Surface Mount Device
