MCUMHR50V225M4X5 Cap, 2.2µF, 50V, 20% multicomp Pro

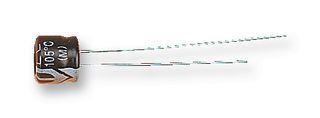

MULTICOMP PRO - MCUMHR50V225M4X5 - Electrolytic Capacitor, 2.2 µF, 50 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar

• Capacitance: 2.2µF
• Voltage Rating: 50V
• Product Range: MCUMHR Series
• Capacitance Tolerance: ± 20%
• Capacitor Terminals: Radial Leaded
• Diameter: 4mm
• Lead Spacing: 1.5mm
• Height: 5mm
• Operating Temperature Min: -40°C
• Operating Temperature Max: 105°C
• Lifetime @ Temperature: 1000 hours @ 105°C
• ESR: -
• Automotive Qualification Standard: -
• Capacitance Tolerance ±: ± 20%
• External Length / Height: 5mm
• Frequency Tolerance: 120Hz
• Lead Diameter: 0.45mm
• Leakage Current: 3µA
• No. of Pins: 2Pins
• Operating Temperature Range: -40°C to +105°C
• Operating life Time: 1000h
• Ripple Current AC: 11mA
• Ripple Current Frequency: 120Hz
• Ripple Current Temperature: 120°C
• Tolerance +: 20%
• Tolerance -: 20%
• Tolerance Temperature: 20°C
• Voltage Rating V DC: 50V
