Omschrijving

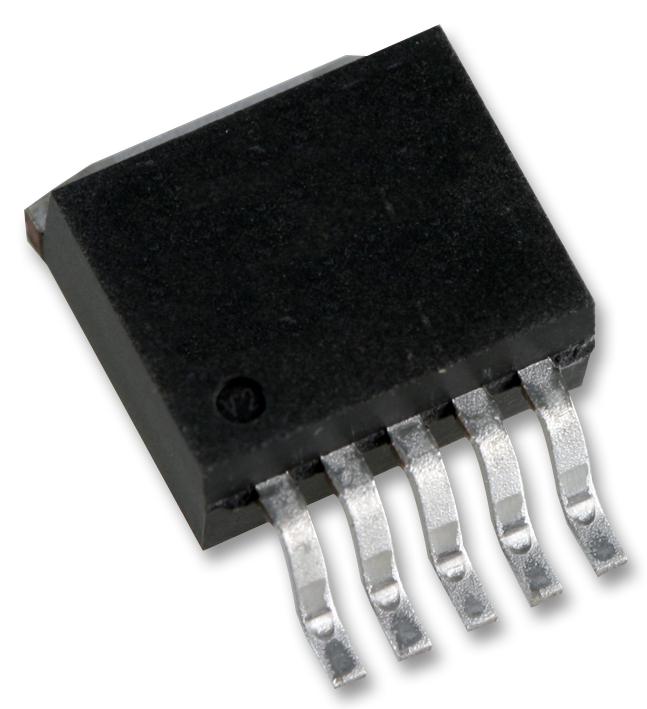

MICROCHIP - MIC37302WU - LDO Voltage Regulator, Adjustable, 2.25V to 6V input, 0.3V drop., 1.24V to 5.5V/3A out, TO-263-5
- Output Type: Adjustable
- Input Voltage Min: 2.25V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.24V
- Adjustable Output Voltage Max: 5.5V
- Output Current: 3A
- Dropout Voltage Vdo: 300mV
- LDO Regulator Case Style: TO-263
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 1%
- Base Number: 37302
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Voltage Adjustable Range: 1.24V to 5.5V
- Output Voltage Max: 5.5V
- Output Voltage Min: 1.24V
- Primary Input Voltage: 6V
- Supply Voltage Min: 2.25V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Adjustable Positive
