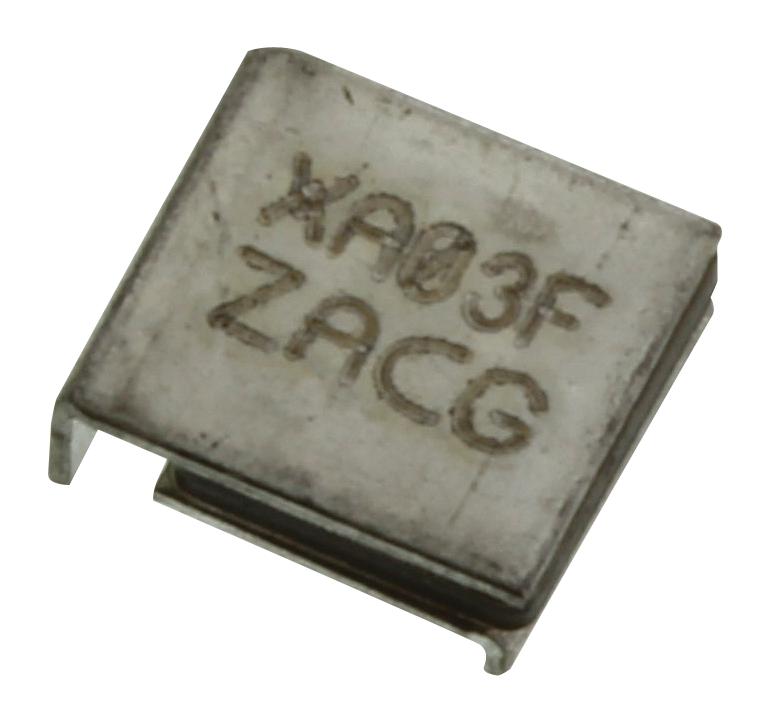

LITTELFUSE - MICROSMD035F-2 - Resettable Fuse, PPTC, 1210 (3225 Metric), PolySwitch microSMD, 6 VDC, 350 mA, 750 mA, 0.2 s
- Thermistor Mounting: SMD
- Product Range: PolySwitch microSMD Series
- Holding Current: 350mA
- Tripping Current: 750mA
- Voltage Rating: 6VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 40A
- External Depth: 2.8mm
- External Length / Height: 0.62mm
- External Width: 3.43mm
- Height: 0.62mm
- Holding Current Max Ih: 0.35A
- Initial Resistance Max: 1.3ohm
- Initial Resistance Min: 0.32ohm
- Interrupt Current Max: 40A
- Operating Voltage: 6V
- PTC Fuse Case Style: 1210 [3225 Metric]
- Tab Width: 0.25mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
