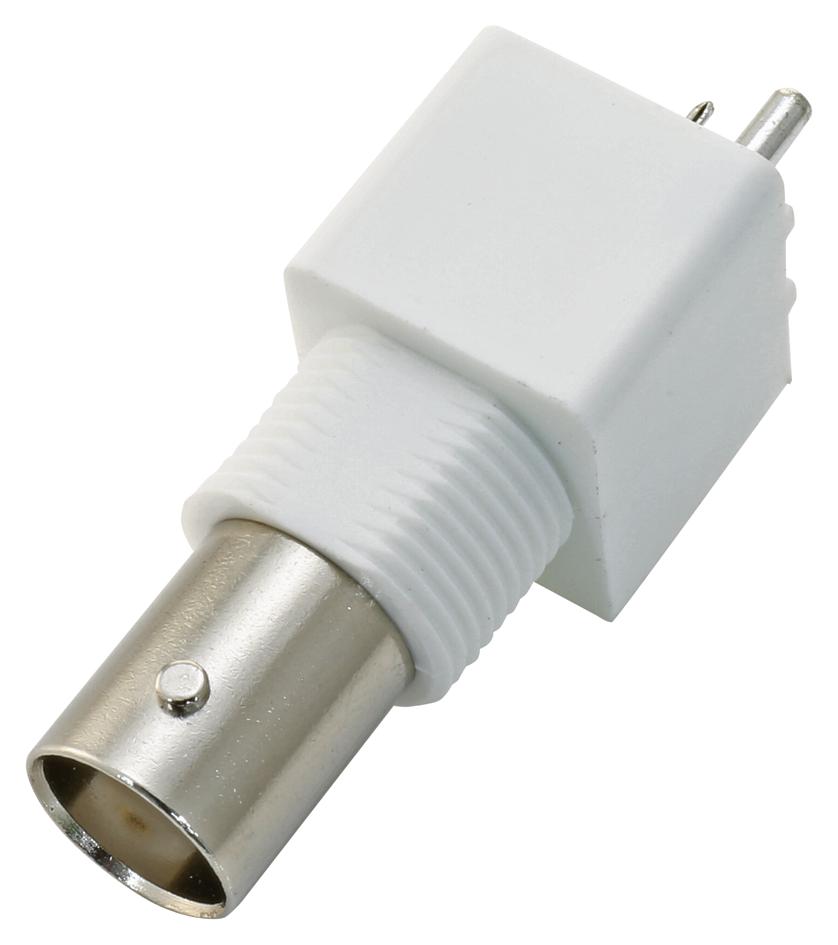

MULTICOMP PRO - MP-13-60-4 DGZ - RF / Coaxial Connector, BNC Coaxial, Right Angle Jack, Solder, 50 ohm, Phosphor Bronze
- Connector Type: BNC Coaxial
- Connector Body Style: Right Angle Jack
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Frequency Max: -
- Connector Mounting: PCB Mount
- Product Range: -
- SVHC: Lead (15-Jan-2019)
- Connector Mounting Orientation: PC Board
- External Depth: 34.7mm
- External Length / Height: 13.1mm
- External Width: 14.5mm
- Flammability Rating: UL94V-0
- Height: 13.1mm
- Insulation Resistance: 5000Mohm
- Material: PBT
- No. of Mating Cycles: 500
- Operating Temperature Max: 60°C
- Operating Temperature Min: -40°C
- Termination Method: Solder
- Withstand Voltage: 1500V
