MPI002/Te/GN/12 Switch, VR, Ring Illum, GRN, SCRW, 12V Bulgin Limited

BULGIN LIMITEDSKU:MPI002/TE/GN/12 Bestelcode:1812261

Prijs:
Actie prijs€37,91

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (10 units)

Documenten en downloads

Omschrijving

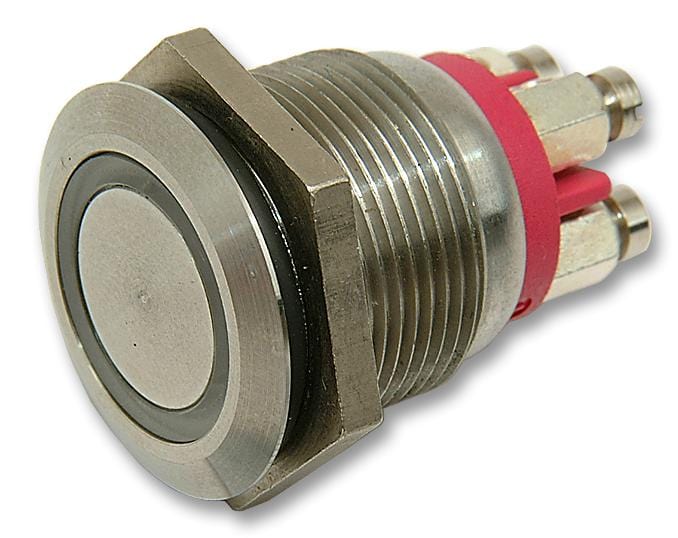

BULGIN LIMITED - MPI002/TE/GN/12 - Vandal Resistant Switch, MPI002, 19.2 mm, SPST-NO, Momentary, Flush, Natural

  • Contact Configuration: SPST-NO
  • Actuator / Cap Colour: Natural
  • Product Range: MPI002 Series
  • Switch Operation: Momentary
  • Illumination Colour: Green
  • Switch Terminals: Screw
  • Contact Current Max: 50mA
  • Contact Voltage AC Max: -
  • Operating Force: 12N
  • Contact Voltage DC Max: 24V
  • SVHC: No SVHC (27-Jun-2018)
  • Contact Current DC Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage VDC: 24V
  • External Diameter: 22mm
  • External Length / Height: 31mm
  • IP / NEMA Rating: IP66
  • IP Rating: IP66
  • Insulation Resistance: 1000Mohm
  • LED Colour: Green
  • LED Voltage: 12V
  • Material: Stainless Steel
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 19.2mm
  • Pushbutton Actuator Style: Flush
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
