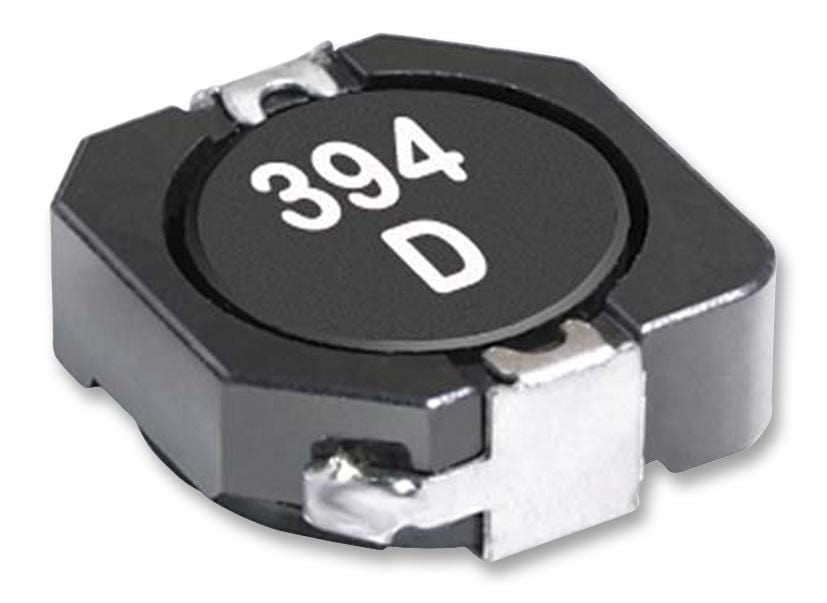

COILCRAFT Power Inductors - SMD MSS1038T-105KLC INDUCTOR, 1000UH, 0.45A, 10%, PWR, 3MHZ COILCRAFT 2288239 MSS1038T-105KLC
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
COILCRAFT Power Inductors - SMD MSS1038T-105KLC INDUCTOR, 1000UH, 0.45A, 10%, PWR, 3MHZ COILCRAFT 2288239 MSS1038T-105KLC

MSS1038T-105KLC Inductor, 1000UH, 0.45A, 10%, Pwr, 3MHz COILCRAFT

COILCRAFTSKU:MSS1038T-105KLC Bestelcode:2288239
Prijs:
€3,15

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

COILCRAFT - MSS1038T-105KLC - Power Inductor (SMD), 1 mH, 450 mA, Shielded, 350 mA, MSS1038T, 10.2mm x 10mm x 3.8mm

  • Inductance: 1mH
  • RMS Current (Irms): 450mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 350mA
  • Product Range: MSS1038T Series
  • Power Inductor Case: 10.2mm x 10mm x 3.8mm
  • DC Resistance Max: 2.853ohm
  • Inductance Tolerance: ± 10%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 3MHz
