Omschrijving

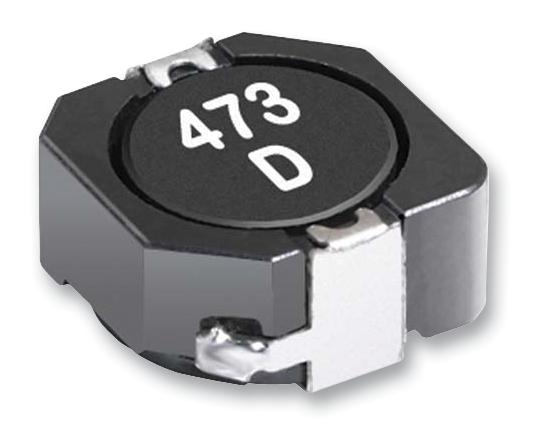

COILCRAFT - MSS1048-333MLC - Power Inductor (SMD), 33 µH, 2.8 A, Shielded, 1.66 A, MSS1048, 10.2mm x 10mm x 4.8mm
- Inductance: 33µH
- RMS Current (Irms): 2.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.66A
- Product Range: MSS1048 Series
- Power Inductor Case: 10.2mm x 10mm x 4.8mm
- DC Resistance Max: 0.068ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 11MHz
