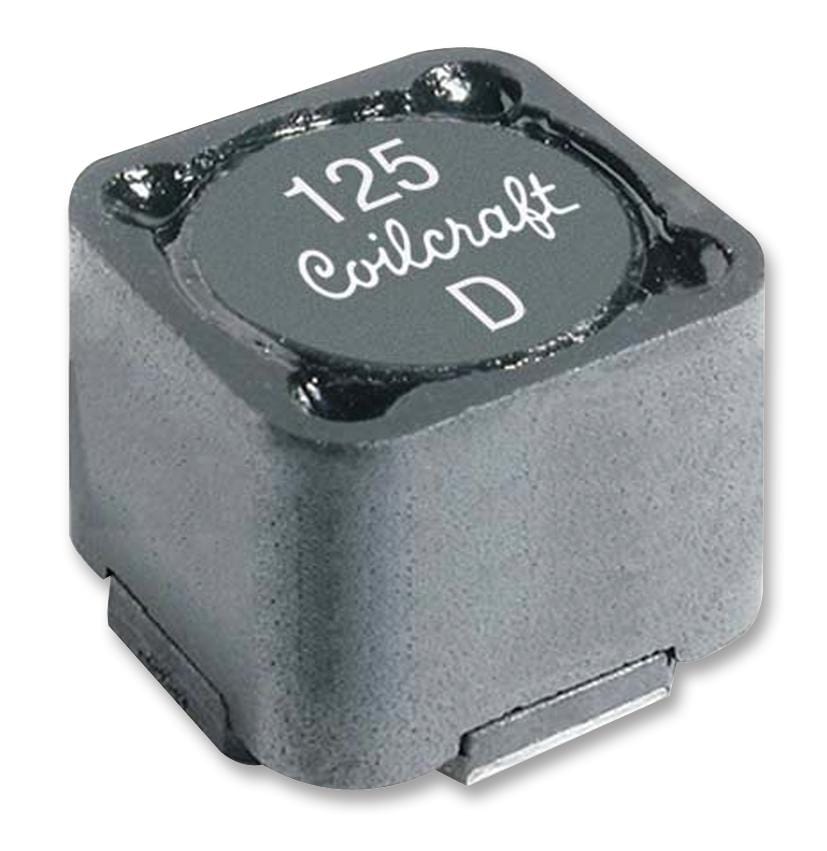

COILCRAFT Power Inductors - SMD MSS1210-105KED INDUCTOR, 1000UH, 1A,10%,1.1MHZ, REEL COILCRAFT 2297388 MSS1210-105KED
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
COILCRAFT Power Inductors - SMD MSS1210-105KED INDUCTOR, 1000UH, 1A,10%,1.1MHZ, REEL COILCRAFT 2297388 MSS1210-105KED

MSS1210-105KED Inductor, 1000UH, 1A,10%,1.1Mhz, Reel COILCRAFT

COILCRAFTSKU:MSS1210-105KED Bestelcode:2297388
Prijs:
€3,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

COILCRAFT - MSS1210-105KED - Power Inductor (SMD), 1 mH, 1 A, Shielded, 980 mA, MSS1210, 12.3mm x 12.3mm x 10mm

  • Inductance: 1mH
  • RMS Current (Irms): 1A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 980mA
  • Product Range: MSS1210 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 10mm
  • DC Resistance Max: 1.03ohm
  • Inductance Tolerance: ± 10%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 1.1MHz
