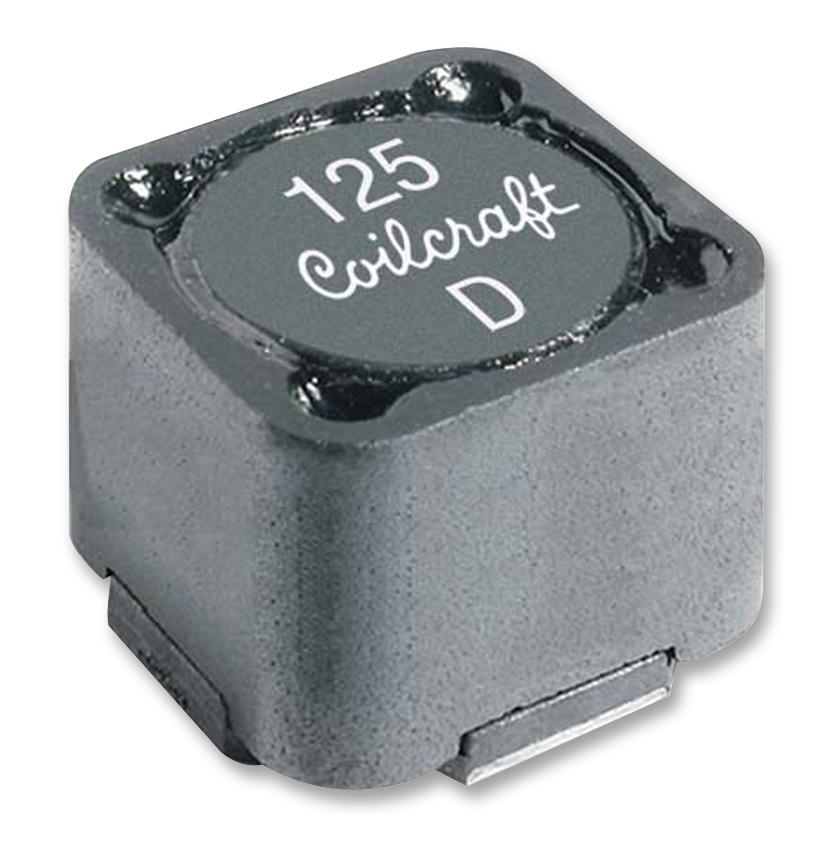

MSS1210-565KED Inductor, 5600UH, 0.48A, 10%, 0.45Mhz COILCRAFT

COILCRAFTSKU:MSS1210-565KED Bestelcode:2288326

Prijs:
Actie prijs€6,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

COILCRAFT - MSS1210-565KED - Power Inductor (SMD), 5.6 mH, 480 mA, Shielded, 410 mA, MSS1210, 12.3mm x 12.3mm x 10mm

  • Inductance: 5.6mH
  • RMS Current (Irms): 480mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 410mA
  • Product Range: MSS1210 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 10mm
  • DC Resistance Max: 4.72ohm
  • Inductance Tolerance: ± 10%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 450kHz
