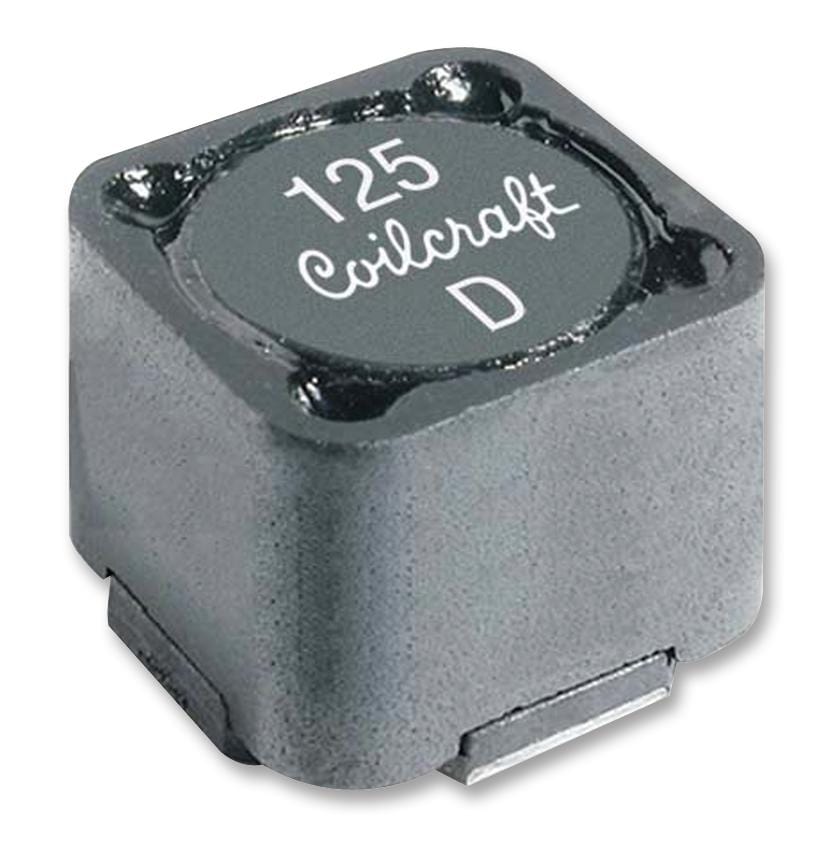

COILCRAFT Power Inductors - SMD MSS1210-825KED INDUCTOR, 8200UH, 0.35A, 10%, 0.38MHZ COILCRAFT 2288328 MSS1210-825KED
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
COILCRAFT Power Inductors - SMD MSS1210-825KED INDUCTOR, 8200UH, 0.35A, 10%, 0.38MHZ COILCRAFT 2288328 MSS1210-825KED

MSS1210-825KED INDUCTOR, 8200UH, 0.35A, 10%, 0.38MHZ COILCRAFT

COILCRAFTSKU:MSS1210-825KED Bestelcode:2288328
Prijs:
€4,60

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

COILCRAFT - MSS1210-825KED - Power Inductor (SMD), 8.2 mH, 350 mA, Shielded, 350 mA, MSS1210, 12.3mm x 12.3mm x 10mm

  • Inductance: 8.2mH
  • RMS Current (Irms): 350mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 350mA
  • Product Range: MSS1210 Series
  • Power Inductor Case: 12.3mm x 12.3mm x 10mm
  • DC Resistance Max: 7.05ohm
  • Inductance Tolerance: ± 10%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 380kHz
