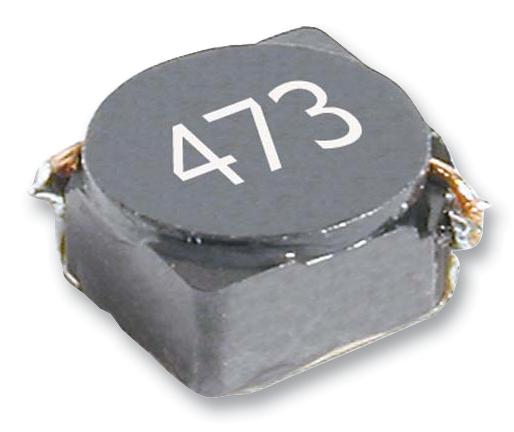

COILCRAFT - MSS6132-472MLC - Power Inductor (SMD), 4.7 µH, 3.1 A, Shielded, 2.18 A, MSS6132, 6.1mm x 6.1mm x 3.2mm
- Inductance: 4.7µH
- RMS Current (Irms): 3.1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.18A
- Product Range: MSS6132 Series
- Power Inductor Case: 6.1mm x 6.1mm x 3.2mm
- DC Resistance Max: 0.043ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Reel Quantity: 500
- Self Resonant Frequency Min: 65MHz
