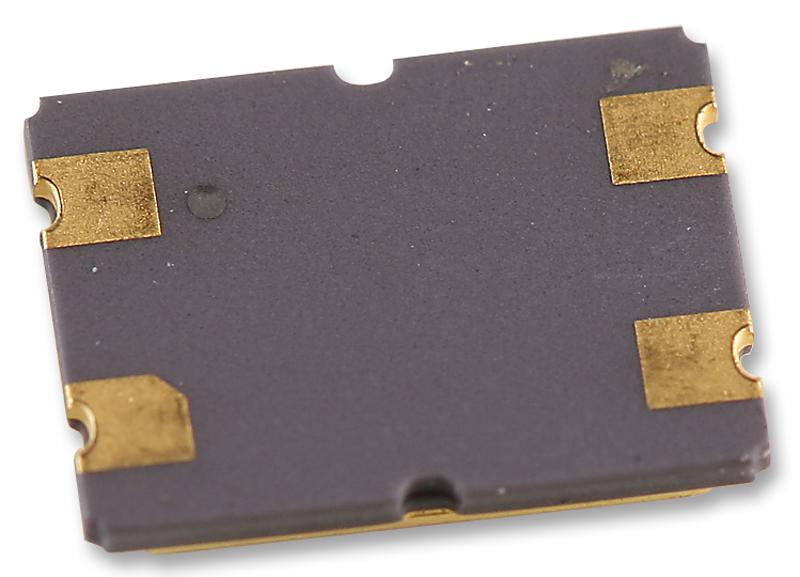

SARONIX - NKS7-120-20 - Crystal, 12 MHz, SMD, 7.2mm x 5.2mm, 50 ppm, 20 pF, 50 ppm, NKS7
- Frequency Nom: 12MHz
- Crystal Case: SMD, 7.2mm x 5.2mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 20pF
- Frequency Tolerance + / -: 50ppm
- Product Range: NKS7 Series
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- SVHC: No SVHC (15-Jun-2015)
- Accuracy: ± 50ppm
- Crystal Mounting Type: SMD
- Drive Level: 500µW
- Frequency: 12MHz
- Frequency Accuracy + @: 50ppm
- Frequency Accuracy - @: 50ppm
- Frequency Stability: ± 50ppm
- No. of Pins: 4Pins
- Operating Temperature Range: -20°C to +70°C
- Output Frequency: 12MHz
- Shunt Capacitance: 7pF
- Temperature Stability + @: 50ppm
- Temperature Stability - @: 50ppm
- Temperature Stabilty: ± 50ppm
