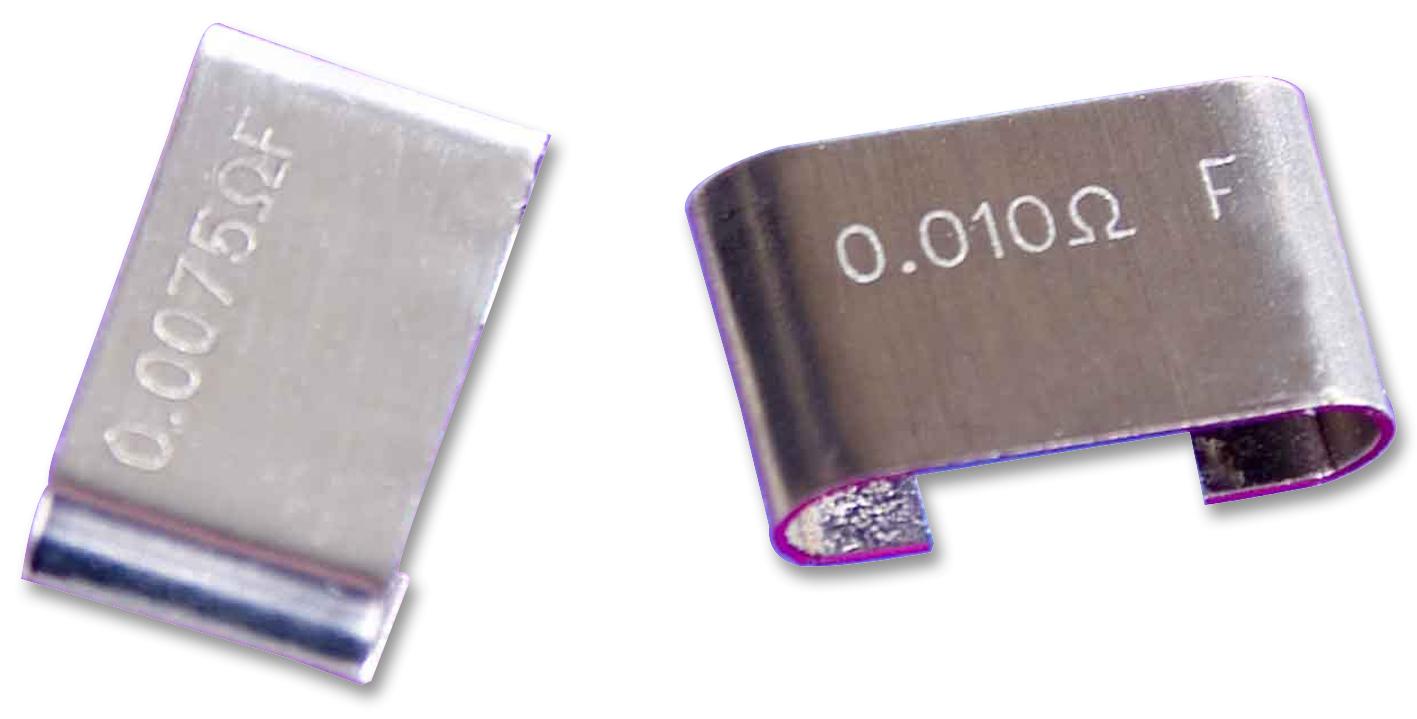

TT ELECTRONICS / WELWYN - OARS-XP-0R01 - SMD Current Sense Resistor, 0.01 ohm, OARS, SMD, 3.5 W, ± 5%, Metal Strip
- Resistance: 0.01ohm
- Product Range: OARS Series
- Resistor Case Style: SMD
- Power Rating: 3.5W
- Resistance Tolerance: ± 5%
- Resistor Element Material: Metal Strip
- Temperature Coefficient: ± 40ppm/°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 4.6mm
- External Length / Height: 12mm
- External Width: 6.3mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Mounting: Surface Mount Device
- Temperature Coeff. +: 40ppm/°C
- Temperature Coeff. -: 40ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
