OVLFR3C7 LED, 5mm, 30DEG, Red TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYSKU:OVLFR3C7 Bestelcode:1497975

Prijs:
Actie prijs€0,51

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1954 units)

Documenten en downloads

Omschrijving

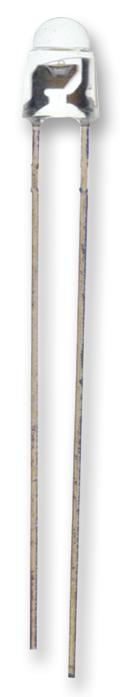

TT ELECTRONICS / OPTEK TECHNOLOGY - OVLFR3C7 - LED, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 2 V, 630 nm

  • LED Colour: Red
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 20mA
  • Forward Voltage: 2V
  • Wavelength Typ: 630nm
  • Luminous Intensity: 5cd
  • Viewing Angle: 30°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Bulb Size: T-1 3/4 (5mm)
  • Dominant Wavelength: 623nm
  • Dominant Wavelength Max: 630nm
  • Dominant Wavelength Min: 619nm
  • Dominant Wavelength Typ: 623nm
  • External Length / Height: 7.7mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Standard
  • Lead Length: 23.9mm
  • Lead Type Stand-Offs: No stand-offs
  • Lens Diameter: 5mm
  • Luminous Intensity @ If Min: 2820mcd
  • Luminous Intensity Typ: 5000mcd
  • Material: AIInGaP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Wavelength: 633nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 100°C
