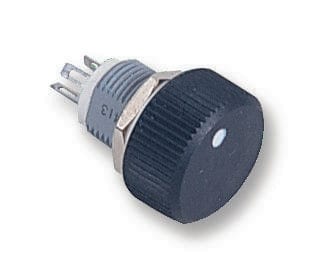

VISHAY - P16NP473KAB15 - Rotary Potentiometer, Cermet, 47 kohm, 1 Turns, Linear, 1 W, ± 10%, P16NP
- Track Resistance: 47kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: P16NP Series
- Potentiometer Mounting: Panel
- Shaft Diameter: -
- No. of Gangs: 1
- Adjustment Type: Rotary
- Shaft Length: -
- Body Diameter: 16mm
- Electrical Angular Rotation Tolerance +: 10°
- Electrical Angular Rotation Tolerance -: 10°
- IP / NEMA Rating: IP67
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Resistor Element Material: Cermet
- Rotation Electrical Angle: 270°
- Rotation Mechanical Angle: 300°
- Temperature Coefficient: ± 150ppm/°C
- Voltage Rating: 350V
