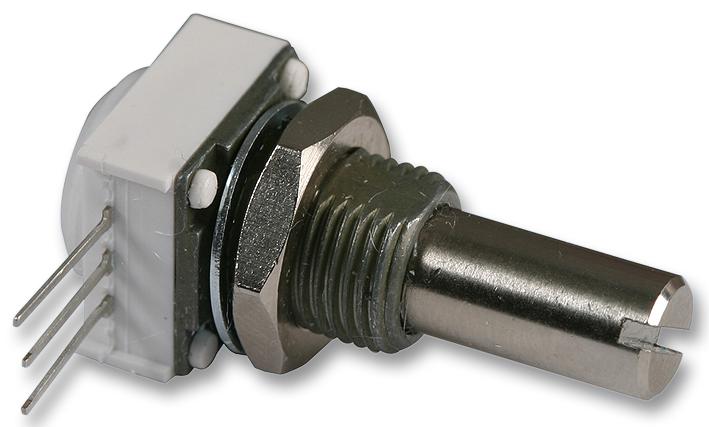

VISHAY - PE30L0FL102KLB - Rotary Potentiometer, Cermet, 1 kohm, 1 Turns, Log (Audio), 1.5 W, ± 10%, PE30
- Track Resistance: 1kohm
- No. of Turns: 1Turns
- Track Taper: Log (Audio)
- Power Rating: 1.5W
- Resistance Tolerance: ± 10%
- Product Range: PE30 Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 6mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 25mm
- Body Diameter: 19.7mm
- Lead Length: 7mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Element Material: Cermet
- Temperature Coefficient: ± 150ppm/°C
- Termination Type: Solder
- Voltage Rating: 38.7V
