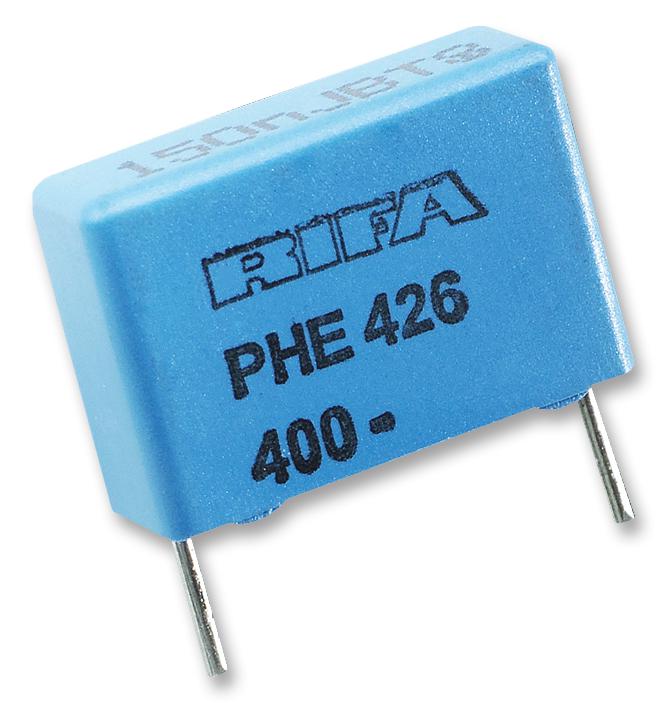

KEMET - PHE426HB6470JR06 - General Purpose Film Capacitor, Metallized PP, Radial Box - 2 Pin, 0.47 µF, ± 5%, 160 V, 250 V
- Capacitance: 0.47µF
- Voltage Rating: 250V
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 5%
- Product Range: PHE426 Series
- Capacitor Case Style: Radial Box
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 15mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance ±: ± 5%
- Capacitor Mounting: Through Hole
- External Depth: 7.5mm
- External Length / Height: 14.5mm
- External Width: 18mm
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +85°C
- Temperature Coeff. +: 50ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Voltage Rating V DC: 250V
