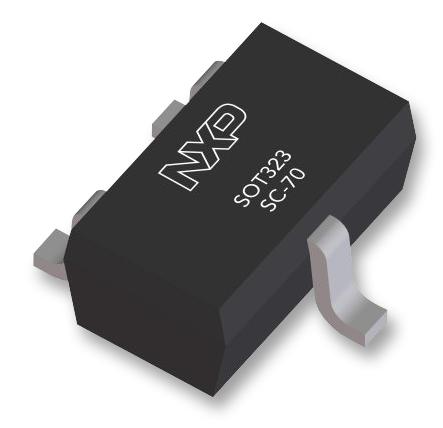

NEXPERIA - PMST3904,115 - Bipolar (BJT) Single Transistor, Switching, NPN, 40 V, 200 mA, 200 mW, SOT-323, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 40V
- Transition Frequency ft: 300MHz
- Power Dissipation Pd: 200mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 100hFE
- Transistor Case Style: SOT-323
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 200mV
- Current Ic Continuous a Max: 200mA
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 100
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Switching
