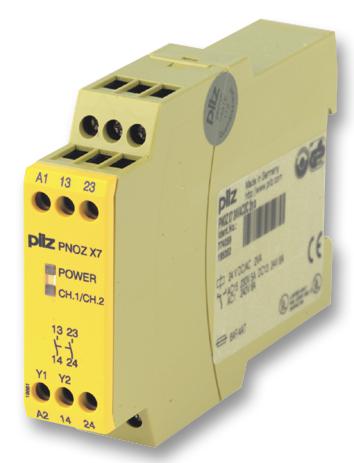

PILZ - PNOZ X7 240VAC - Safety Relay, 240 VAC, DPST-NO, PNOZ X7, DIN Rail, 6 A, Screw
- Coil Voltage: 240VAC
- Contact Configuration: DPST-NO
- Product Range: PNOZ X7 Series
- Relay Mounting: DIN Rail
- Contact Current: 6A
- Relay Terminals: Screw
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Nom: 24V
- Contact Material: Silver Tin Oxide
- IP Rating: IP20, IP40, IP54
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: 2
- Approvals / Standards: EN 954, IEC 60204
- Coil Voltage VAC Nom: 24V
- Contact Current AC Max: 6A
- Contact Current DC Max: 6A
- Contact Current Max: 6A
- Contact Voltage AC Max: 240V
- Contact Voltage DC Max: 24V
- DC Coil Power: 2W
- Delay: 500ms
- External Depth: 122mm
- External Height: 87mm
- External Length / Height: 87mm
- External Width: 22.5mm
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Power Consumption: 3.5VA
- Protection Type: IP54
- Safety Category: Level 2
- Supply Voltage: 230VAC
- Switching Capacity: AC1
