APEM - PT65-701L508 - Rotary Coded Switch, PT65, Through Hole, 10 Position, 24 VDC, BCD, 400 mA
- Product Range: PT65 Series
- Switch Mounting: Through Hole
- No. of Switch Positions: 10 Position
- Switching Voltage: 24VDC
- Output Code: BCD
- Switching Current: 400mA
- Switch Construction: Sealed
- Actuator Level: Raised
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Cross Shaped
- Actuator Type: Screwdriver Slot
- Contact Current DC Max: 400mA
- Contact Current Min: 100mA
- Contact Current Rating: 400mA
- Contact Resistance: 80mohm
- Contact Voltage DC Max: 24V
- External Depth: 10mm
- External Length / Height: 10mm
- External Width: 10mm
- Flammability Rating: UL94V-0
- Lead Spacing: 2.54mm
- No. of Mechanical Operations: 10000
- No. of Positions: 10Ways
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Pitch Spacing: 2.54mm
- Switch Type: DIP
- Switching Current DC Max: 150mA
Verwachte verzendkosten
Bekijk ook eens

C&K COMPONENTS
7101MD9ABE Switch, Pcb, SPDT C&K Components
Actie prijs€12,77
Op voorraad, 192 producten
C&K COMPONENTS
1201M2S3CQE2 Slide Switch, DPDT, On-On C&K Components
Actie prijs€18,33
Op voorraad, 35 producten
C&K COMPONENTS

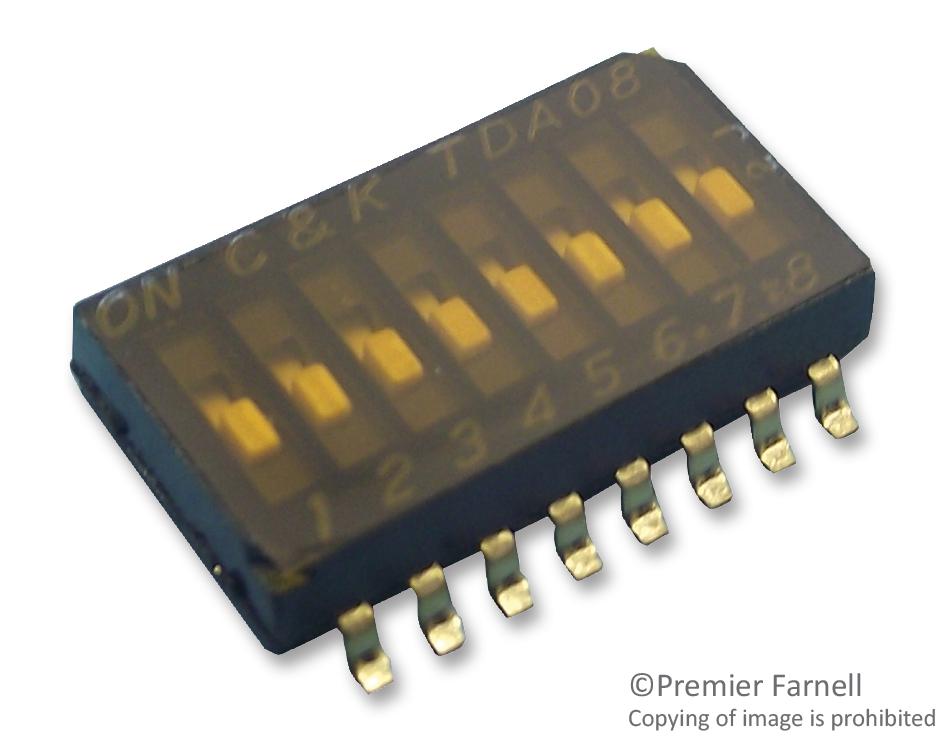

TDA08H0SB1 Dip Switch, Position 8 C&K Components
Actie prijs€7,19
Op voorraad, 610 producten
C&K COMPONENTS
ET01MD1CBE Switch, Pcb, SPDT C&K Components
Actie prijs€11,44
Op voorraad, 27 producten
ERG COMPONENTS

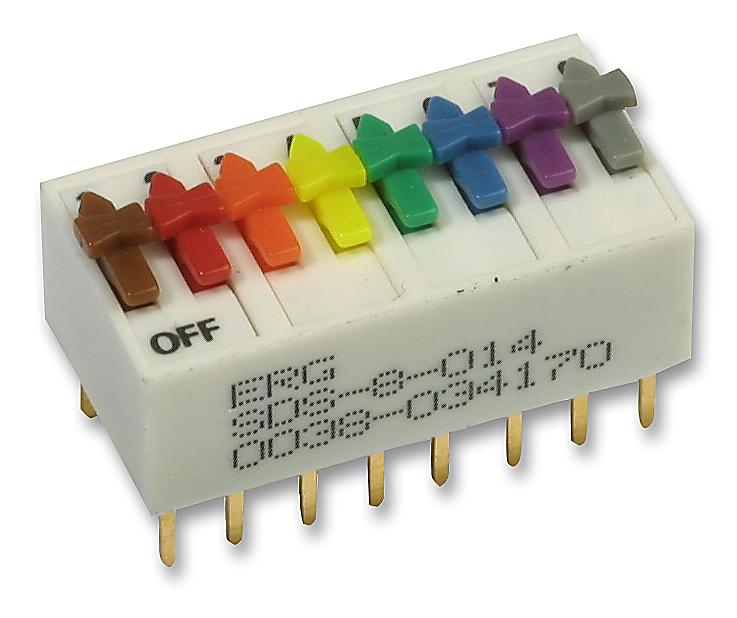

SDS-8-014 Switch, Dil, ST, 8WAY Erg Components
