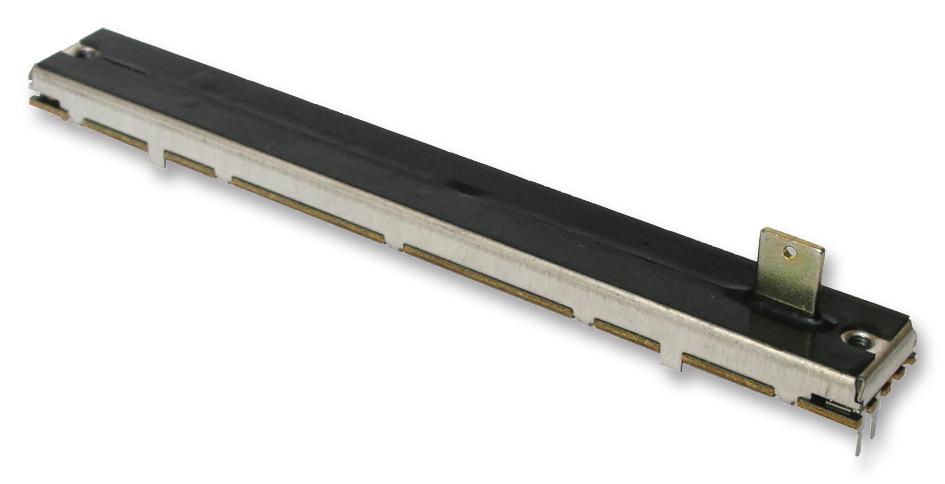

BOURNS - PTB0143-2010BPB103 - Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 500 mW, Linear, Through Hole
- Track Resistance: 10kohm
- Power Rating: 500mW
- Resistance Tolerance: ± 20%
- Product Range: PTB Series
- Track Taper: Linear
- Temperature Coefficient: -
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 16mm
- External Length / Height: 18mm
- External Width: 128mm
- Height: 18mm
- Hole Pitch: 120mm
- Operating Temperature Max: 50°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +50°C
- Resistor Element Material: Metal Foil
- Termination Type: Solder
- Travel: 100mm
- Voltage Rating: 200V
