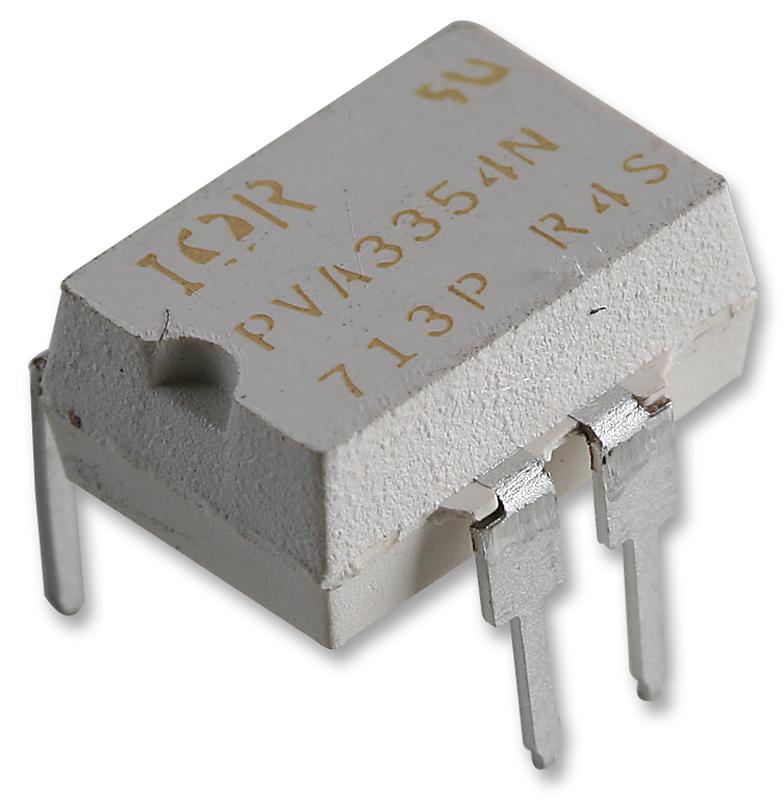

INFINEON - PVA3354NPBF - MOSFET Relay, 300 V, 150 mA, 24 ohm, SPST-NO
- Contact Configuration: SPST-NO
- Load Current: 150mA
- Relay Terminals: Through Hole
- Load Voltage Max: 300V
- On State Resistance Max: 24ohm
- Isolation Voltage: 4kV
- Forward Current If: 25mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 3354
- Control Current Max: 25mA
- Control Current Typ: 2mA
- Control Voltage Type: DC
- Current Load AC Max: 130mA
- Current Temperature: 40°C
- Dielectric Strength Voltage Vrms: 2500V
- Load Current DC Max: 130mA
- Load Current Max: 150mA
- Load Current RMS Max: 150mA
- Load Voltage Range: 0V to 200V
- No. of Pins: 4Pins
- Nominal Control Current DC: 5mA
- Off State Resistance Min: 10Gohm
- On Resistance Rds(on): 24ohm
- On State AC Resistance @ temp: 24ohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Voltage V(pk) Max: 300V
- Peak Load Voltage +: 300V
- Peak Load Voltage -: 300V
- RMS Load Voltage Max: 4000V
- RMS Load Voltage Min: 0VAC
- Rate of Voltage Change dv / dt: 1000V/µs
- Resistance Temperature: 25°C
- Response Time Off Max: 50µs
