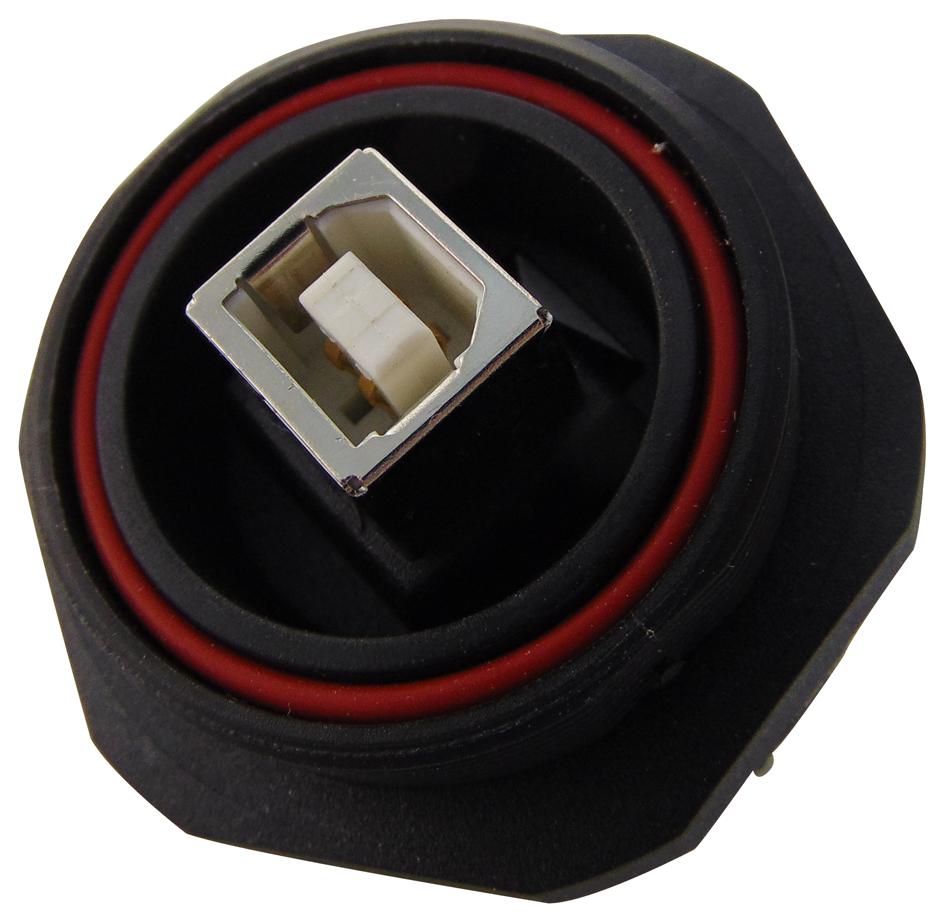

PX0447 Sealed Mini USB, 2.0 Type B, Rcpt, IP68 Bulgin Limited

BULGIN LIMITED - PX0447 - USB Sealed Connector, Mini USB Type B, USB 2.0, Receptacle, 5 Position, Through Hole Mount

• USB Connector Type: Mini USB Type B
• USB Standard: USB 2.0
• Gender: Receptacle
• No. of Positions: 5 Position
• Connector Mounting: Through Hole Mount
• IP Rating: IP68, IP69K
• Product Range: -
• Contact Material: Copper Alloy
• Contact Plating: Gold Plated Contacts
• SVHC: No SVHC (27-Jun-2018)
• Connector Mounting Orientation: Panel
• Connector Type: Mini USB Type B
• Contact Termination: Through Hole Vertical
• Contact Termination Type: Through Hole
• Current Rating: 1A
• Flammability Rating: UL94V-0
• IP / NEMA Rating: IP68, IP69K
• No. of Contacts: 5Contacts
• No. of Mating Cycles: 5000
• No. of Positions: 5Ways
• Operating Temperature Max: +70°C
• Operating Temperature Min: -20°C
• Standard: USB V2.0
• Voltage Rating VAC: 30V
