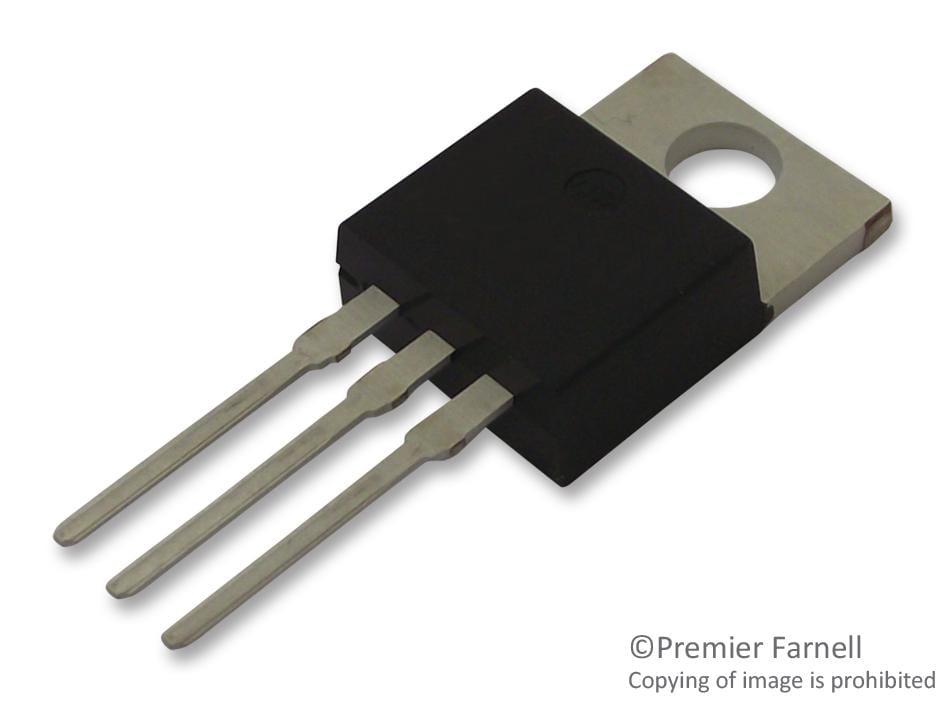

LITTELFUSE - Q4008L4TP - Triac, Teccor®, 400 V, 8 A, TO-220AB, 1.3 V, 83 A, 50 mA
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- On State RMS Current IT(rms): 8A
- Triac Case Style: TO-220AB
- Gate Trigger Current Max (QI), Igt: 25mA
- Gate Trigger Voltage Max Vgt: 1.3V
- Peak Gate Power: -
- Peak Non Rep Surge Current Itsm 50Hz: 83A
- Holding Current Max Ih: 50mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: Qxx08xx Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (07-Jul-2017)
