R13-234I-05-BB-0A Switch, Rocker, On-Off-On, Black multicomp Pro

MULTICOMP PROSKU:R13-234I-05-BB-0A Bestelcode:1634640

Prijs:
Actie prijs€4,50

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4831 units)

Documenten en downloads

Omschrijving

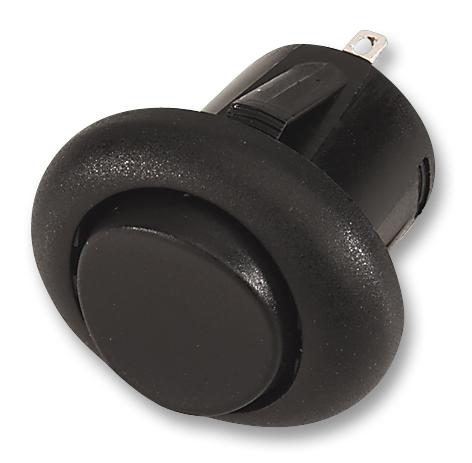

MULTICOMP PRO - R13-234I-05-BB-0A - Rocker Switch, (On)-Off-(On), SPDT, Non Illuminated, Panel Mount, Black, R13

  • Illumination: Non Illuminated
  • Contact Configuration: SPDT
  • Switch Operation: (On)-Off-(On)
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 12V
  • Product Range: R13 Series
  • Bezel Depth: 20.5mm
  • Bezel Height: 5mm
  • Bezel Width: 20.5mm
  • Colour: Black
  • Contact Current AC: 3A
  • Contact Current AC Max: 6A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250VAC
  • Flammability Rating: UL 94V-2
  • Height: 14mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Material: Nylon
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 15mm
  • Panel Thickness Max: 3mm
  • Panel Thickness Min: 0.75mm
  • Terminal Material: Silver Plated Brass
