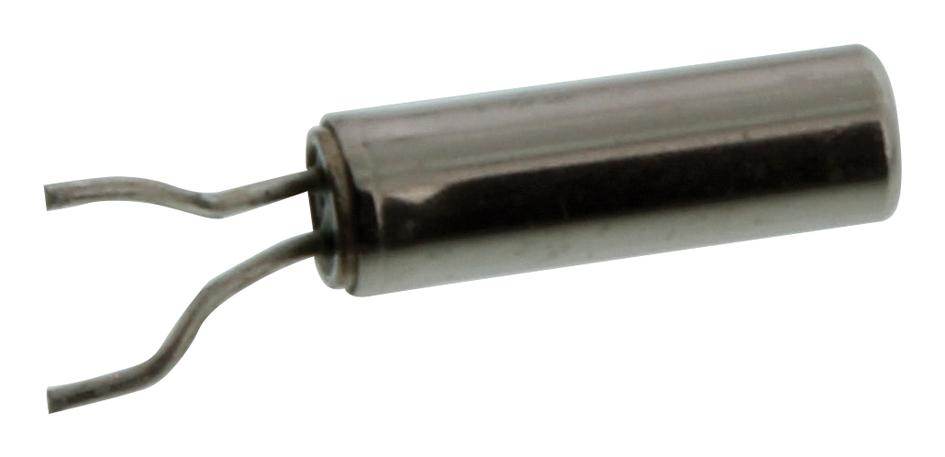

RALTRON - R26-32.768- 12.5 - Crystal, 32.768 kHz, Cylinder Radial, 6.2mm x 2mm Dia, 12.5 pF, 20 ppm, R26
- Frequency Nom: 32.768kHz
- Crystal Case: Cylinder Radial, 6.2mm x 2mm Dia
- Frequency Stability + / -: -
- Load Capacitance: 12.5pF
- Frequency Tolerance + / -: 20ppm
- Product Range: R26 Series
- Operating Temperature Min: -20°C
- Operating Temperature Max: 60°C
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: ± 20ppm
- Crystal Mounting Type: Through Hole
- Frequency: 32.768kHz
- No. of Pins: 2Pins
- Operating Temperature Range: -20°C to +60°C
- Output Frequency: 32.768kHz
