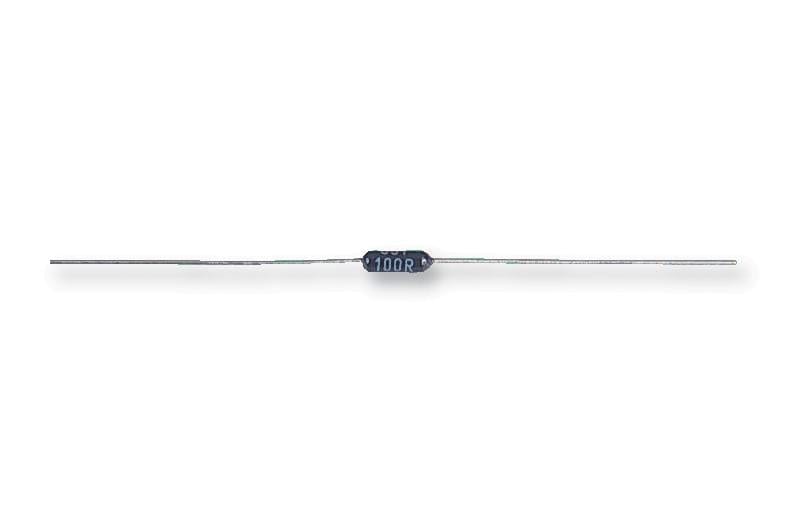

TT ELECTRONICS / WELWYN - RC55Y-4K75BI - Through Hole Resistor, 4.75 kohm, RC, 250 mW, ± 0.1%, Axial Leaded, 350 V
- Resistance: 4.75kohm
- Product Range: RC Series
- Power Rating: 250mW
- Resistance Tolerance: ± 0.1%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 350V
- Resistor Element Material: Metal Film
- Temperature Coefficient: ± 15ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 2.5mm
- External Length / Height: 7.2mm
- Full Power Rating Temperature: 70°C
- Lead Diameter: 0.6mm
- Lead Length: 30mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Through Hole
- Standard: BS9111 N001
- Temperature Coeff. +: 15ppm/°C
- Temperature Coeff. -: 15ppm/°C
- Tolerance +: 0.1%
- Tolerance -: 0.1%
- Voltage Rating V DC: 200V
- Voltage Rating VAC: 200V
