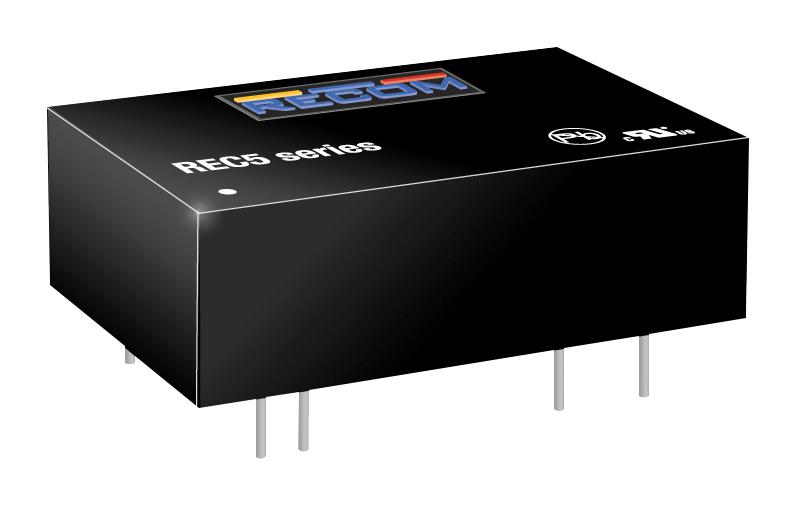

RECOM POWER - REC5-2405SRW/H4/A - Isolated Through Hole DC/DC Converter, ITE & Medical, 2:1, 5 W, 1 Output, 5 V, 1 A
- No. of Outputs: 1 Output
- Output Power Max: 5W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 1A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 32mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN, UL
- Approvals & Standards: CSA, IEC 60601, UL
- Efficiency Max: 86%
- External Depth: 10.2mm
- External Length / Height: 32mm
- External Width: 20.3mm
- Isolation Voltage: 4kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: +70°C
- Operating Temperature Min: -40°C
- Power Rating: 5W
