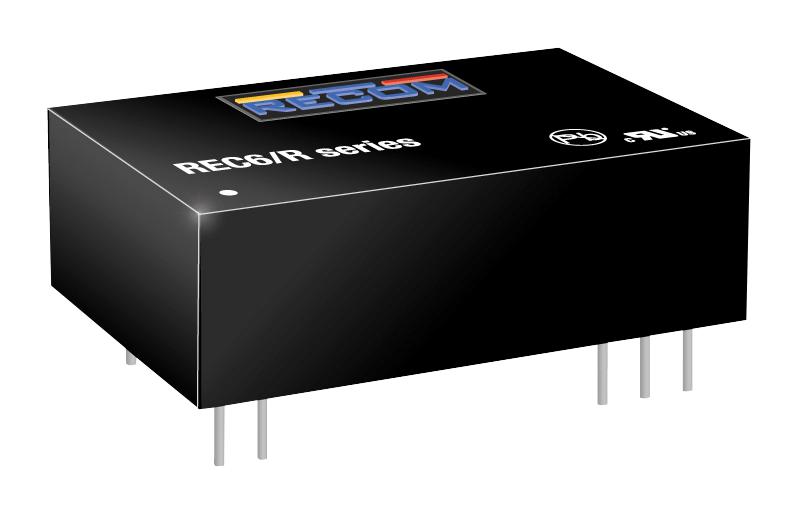

RECOM POWER - REC6-2412DRW/R10/A - Isolated Through Hole DC/DC Converter, Medical, 2:1, 6 W, 1 Output, 12 V, 500 mA
- No. of Outputs: 1 Output
- Output Power Max: 6W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 500mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: REC6 Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 32mm
- SVHC: No SVHC (15-Jan-2019)
- Approvals & Standards: CSA 22.2 No. 60601, IEC 60601, UL 60601
