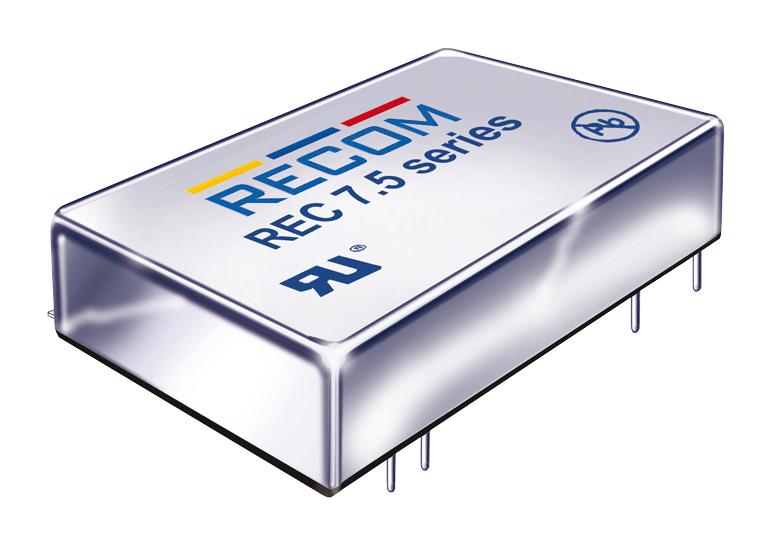

RECOM POWER - REC7.5-2415DRW/H2/A/M - Isolated Through Hole DC/DC Converter, ITE, 2:1, 7.5 W, 2 Output, 15 V, 250 mA
- No. of Outputs: 2 Output
- Output Power Max: 7.5W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 250mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 250mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.5mm
- Depth: 32mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN, UL
- Approvals & Standards: CSA, IEC 60601, UL
- Efficiency Max: 86%
- External Depth: 10.5mm
- External Length / Height: 32mm
- External Width: 20.3mm
- Isolation Voltage: 2kV
- No. of Outputs: 2Outputs
- Operating Temperature Max: +71°C
- Operating Temperature Min: -40°C
- Power Rating: 7.5W
