RI58-D/1000ED.32IB Encoder, Rotary HENGSTLER

HENGSTLERSKU:RI58-D/1000ED.32IB Bestelcode:616000

Prijs:
Actie prijs€535,88

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

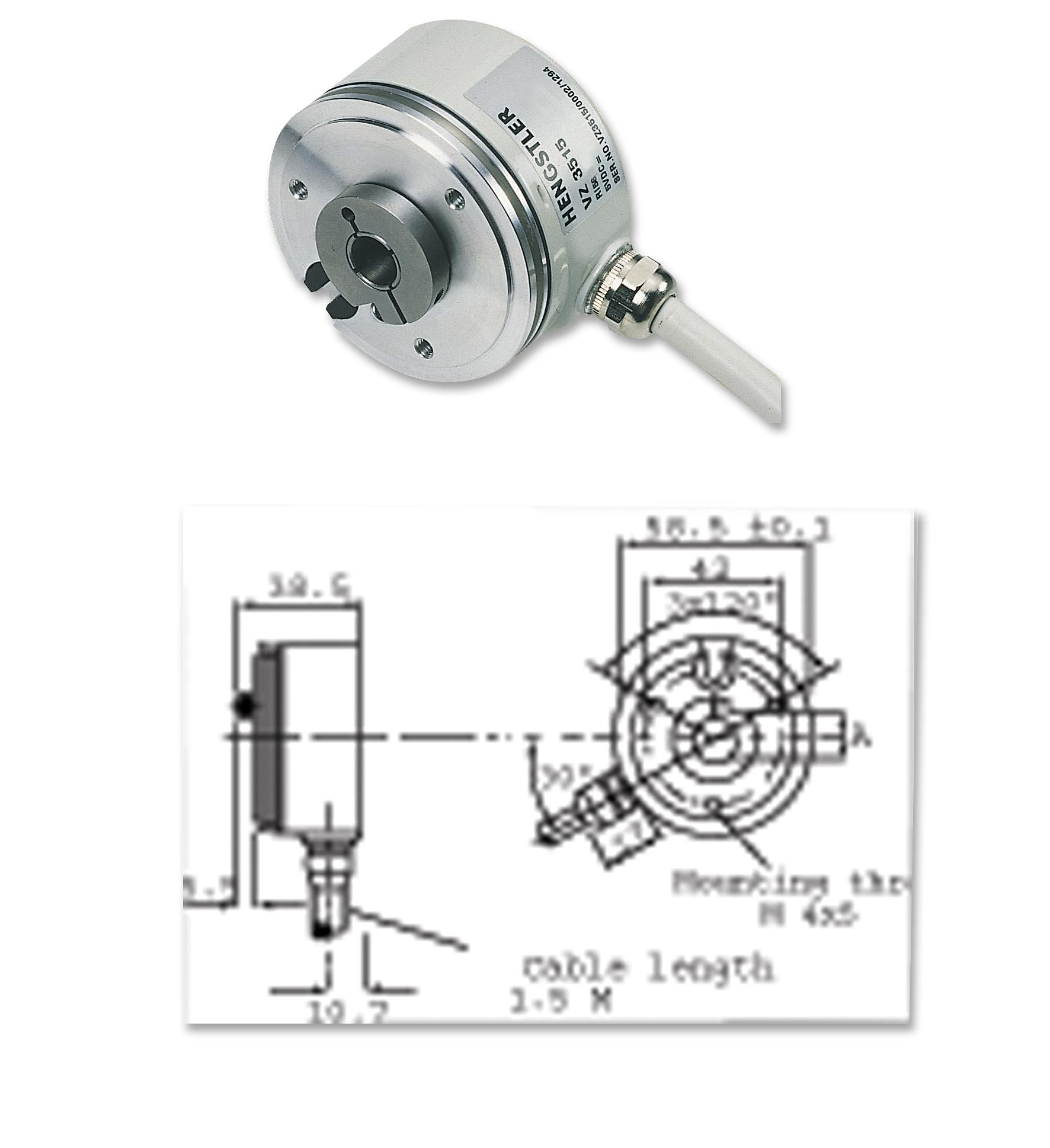

HENGSTLER - RI58-D/1000ED.32IB - Rotary Encoder, Optical, Incremental, 1000 PPR, 0 Detents, Horizontal, Without Push Switch

  • Supply Voltage Min: 10V
  • Supply Voltage Max: 30V
  • No. of Channels: 3Channels
  • Rotational Speed Max: 4000rpm
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Body Diameter: 58.5mm
  • Connector Type: Cable
  • Current Consumption: 60mA
  • Encoder Resolution: 1000
  • External Length / Height: 38.5mm
  • Lead Length: 1.5m
  • Load Current: 30mA
  • No. of Pulses Per Revolution: 1000
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +70°C
  • Output Voltage: 3V
  • Pulse Output Count: 1000
  • Rotational Speed: 6000rpm
  • Shaft Diameter: 10mm
  • Torque: 0.02N-m
  • Type: Incremental Encoder
