Omschrijving

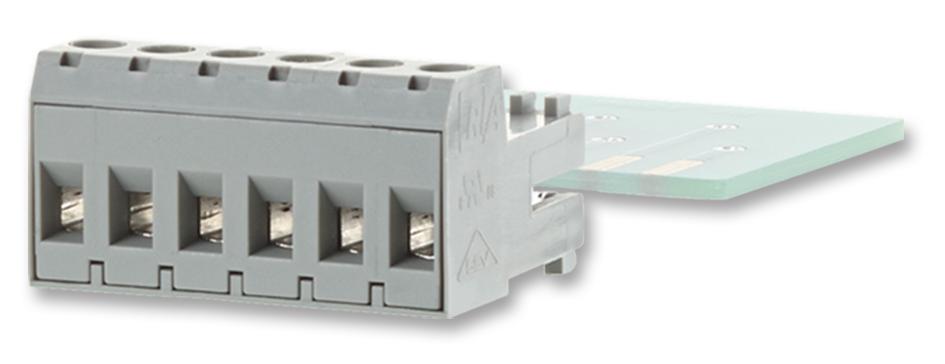

METZ CONNECT - RP99506VDNN - Pluggable Terminal Block, 5 mm, 6 Ways, 24AWG to 12AWG, 2.5 mm², Screw, 6 A
- Pitch Spacing: 5mm
- No. of Positions: 6Ways
- Wire Size (AWG): 24AWG to 12AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 6A
- Rated Voltage: 130V
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Connector Mounting: Cable Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Brass
- Contact Plating: Nickel Plated Contacts
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 24AWG
