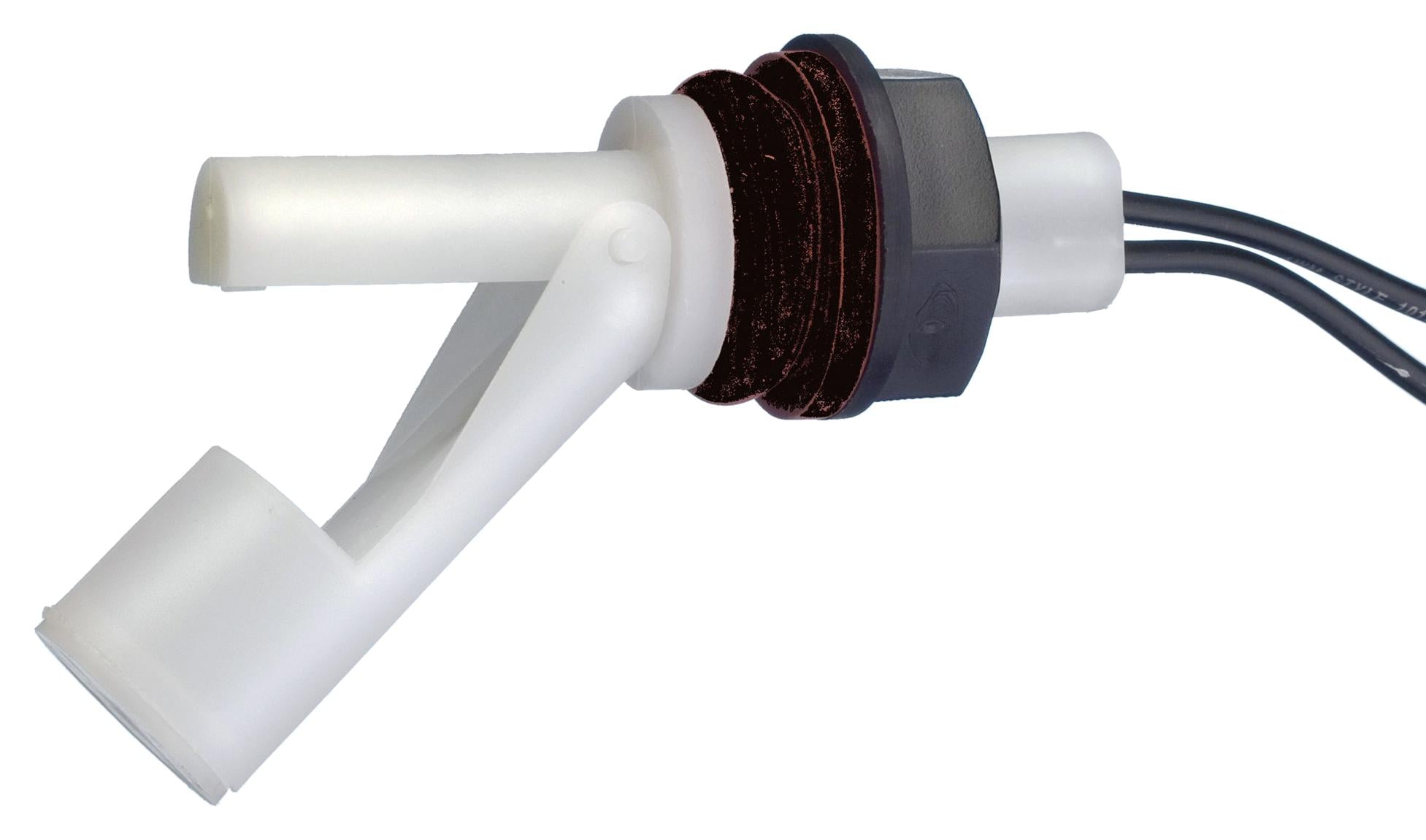

SENSATA / CYNERGY3 - RSF74Y100RM - Float Switch, RSF70 Series, Horizontal, External, SPST, Polypropylene, 25 VA, 1 m Cable
- Operating Pressure Max: -
- Sensor Body Material: PP (Polypropylene)
- Output Current: 600mA
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: UL
- Body Material: PP (Polypropylene)
- Colour: Opaque
- Contact Configuration: SPST
- Contact Current AC Max: 0.6A
- Contact Voltage AC Max: 240VAC
- Contact Voltage DC Max: 120VDC
- External Length / Height: 88mm
- Fixing Hole Diameter: 23mm
- Lead Length: 0.5m
- Material: GFS Polypropylene
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Power Rating: 25W
- Sensor Output: SPST-NO / SPST-NC
- Specific Gravity of Liquid Min: 0.85
