Omschrijving

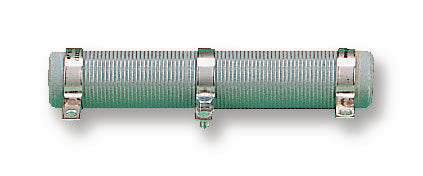

VISHAY - RSSD20117A1000JB15 - Resistor, Solder Lug, 100 ohm, RSSD, 100 W, ± 5%, Solder Lug
- Resistance: 100ohm
- Product Range: RSSD Series
- Power Rating: 100W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: -
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 75ppm/°C
- Body Diameter: 22mm
- External Length / Height: 117mm
- Full Power Rating Temperature: 25°C
- Operating Temperature Max: 450°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +450°C
- Resistor Case Style: Tubular
- Resistor Mounting: Panel
- Surge Power Rating: 1000W
- Surge Power Rating Time: 5s
- Temperature Coeff. +: 75ppm/°C
- Temperature Coeff. -: 75ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
