Omschrijving

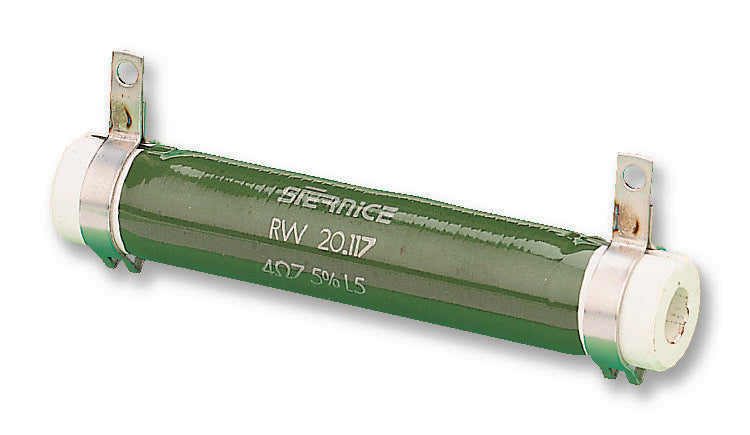

VISHAY - RW20117A102JB15 - Resistor, Solder Lug, 1 kohm, RW, 80 W, ± 5%, Solder Lug, 1.1 kV
- Resistance: 1kohm
- Product Range: RW Series
- Power Rating: 80W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: 1.1kV
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 75ppm/°C
- Approval Category: NF C 93-214
- Body Diameter: 23mm
- Element Limiting Voltage: 1100V
- External Length / Height: 117mm
- Full Power Rating Temperature: 25°C
- Operating Temperature Max: 450°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +450°C
- Power Rating at 25°C: 72W
- Resistor Case Style: Tubular
- Resistor Mounting: Panel
- Temperature Coeff. +: 75ppm/°C
- Temperature Coeff. -: 75ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
