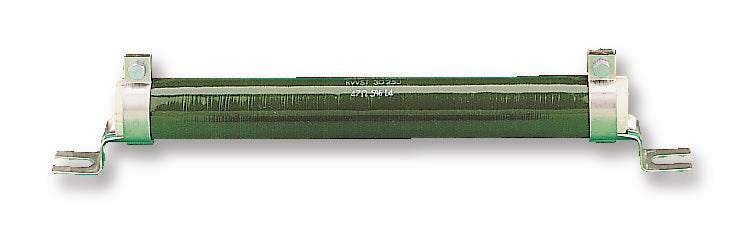

VISHAY - RWST25168C4702JB04 - Resistor, Solder Lug, 47 kohm, RWST, 160 W, ± 5%, Solder Lug, 1.9 kV
- Resistance: 47kohm
- Product Range: RWST Series
- Power Rating: 160W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: 1.9kV
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 75ppm/°C
- Body Diameter: 28mm
- Element Limiting Voltage: 1900V
- External Length / Height: 168mm
- Fixing Centres: 199mm
- Full Power Rating Temperature: 25°C
- Operating Temperature Max: 450°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +450°C
- Resistor Case Style: Tubular
- Resistor Mounting: Panel
- Slot Width: 6.5mm
- Surge Power Rating: 1600W
- Surge Power Rating Time: 5s
- Temperature Coeff. +: 75ppm/°C
- Temperature Coeff. -: 75ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
