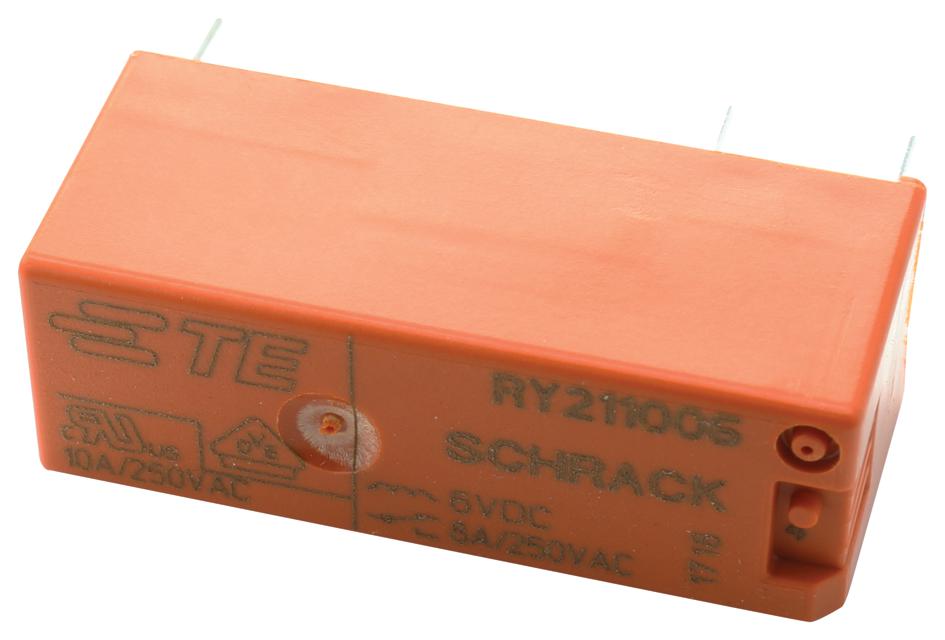

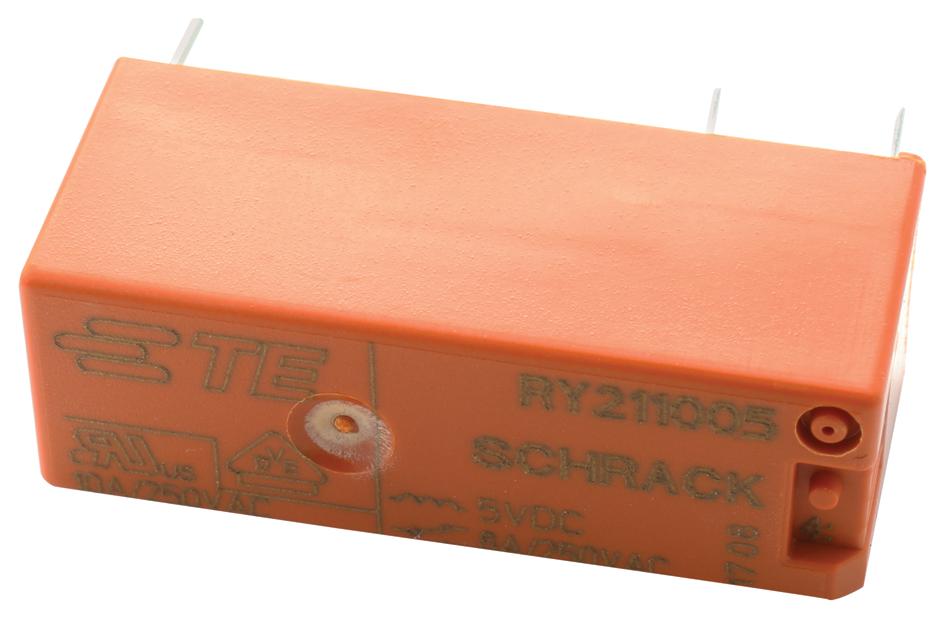

RY611024 Relay, SPDT, 250VAC, 8A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:RY611024 Bestelcode:9659722

Prijs:
Actie prijs€5,02

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (37649 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - 2-1393225-1 - General Purpose Relay, RYII Series, Power, Non Latching, SPDT, 24 VDC, 8 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 8A
  • Product Range: RYII Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 2.35kohm
  • SVHC: No SVHC (15-Jan-2018)
  • Approvals & Standards: VDE
  • Coil Current: 10.2mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 8A
  • Contact Voltage AC Nom: 250V
  • External Depth: 10.1mm
  • External Height: 12.3mm
  • External Width: 28.5mm
  • Nom Operating Power: 245mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 9ms
  • Relay Type: Power - General Purpose
  • Release Time: 5ms
