Omschrijving

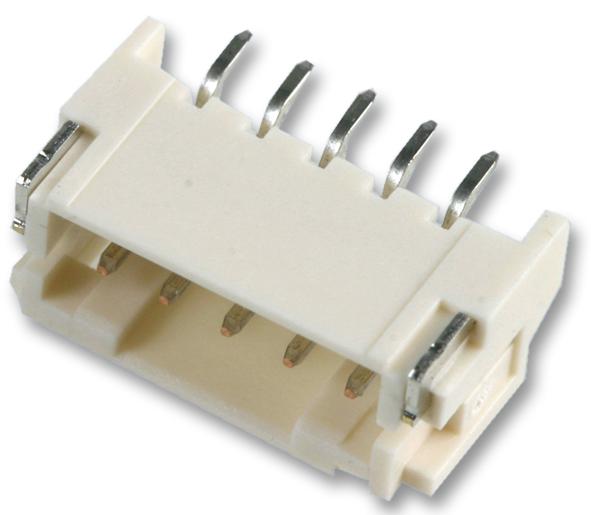

JST (JAPAN SOLDERLESS TERMINALS) - S5B-PH-SM4-TB(LF)(SN) - Pin Header, Shrouded, Wire-to-Board, 2 mm, 1 Rows, 5 Contacts, Surface Mount, PH
- Pitch Spacing: 2mm
- No. of Contacts: 5Contacts
- Gender: Header
- Product Range: PH Series
- Contact Termination Type: Surface Mount
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, TUV, UL
- Colour: White
- Contact Resistance Max: 10mohm
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 100V
- Working Voltage: 100V
