Omschrijving
C&K COMPONENTS - SDS001 - Detector Switch, SDS, SPST-NO, Solder, 100 mA, 12 V, 5.7 mm
- Product Range: SDS Series
- Contact Configuration: SPST-NO
- Switch Terminals: Solder
- Contact Current Max: 100mA
- Contact Voltage DC Nom: 12V
- External Height: 5.7mm
- External Width: 8.2mm
- External Depth: 5mm
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Side
- Actuator / Cap Colour: Black
- Contact Current @ Contact Voltage DC Max: 100mA
- Contact Current DC Max: 100mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 12V
- External Length / Height: 2mm
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
Verwachte verzendkosten
Bekijk ook eens

C&K COMPONENTS

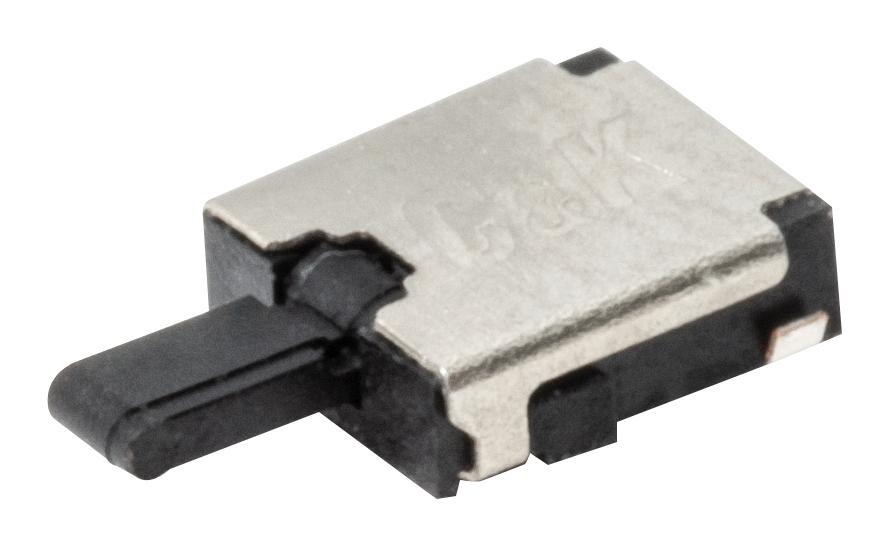

SDS001RULC - Detector Switch, Side Actuated, SDS Series, SPST-NO, Solder, 10 µA, 1.8 V, 2 mm - C&K COMPONENTS
Actie prijs€2,11
Op voorraad, 5935 producten
C&K COMPONENTS
KSU213WLFG Detection Switch, Miniature, 3WAY C&K Components
Actie prijs€2,48
Op voorraad, 2969 producten
C&K COMPONENTS
FDSD002R Detect Switch, SPST-NO, 0.01A, 5VDC, SMD C&K Components
Actie prijs€2,76
Op voorraad, 1854 producten
C&K COMPONENTS

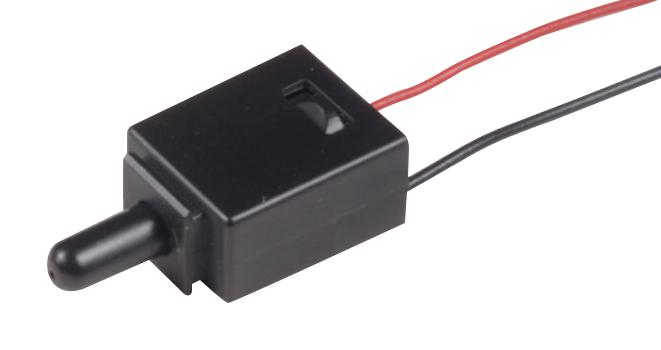

KDS11 Detect Switch, SPST, 0.4VA, 20V, Panel C&K Components
Actie prijs€8,76
Op voorraad, 689 producten
ERG COMPONENTS

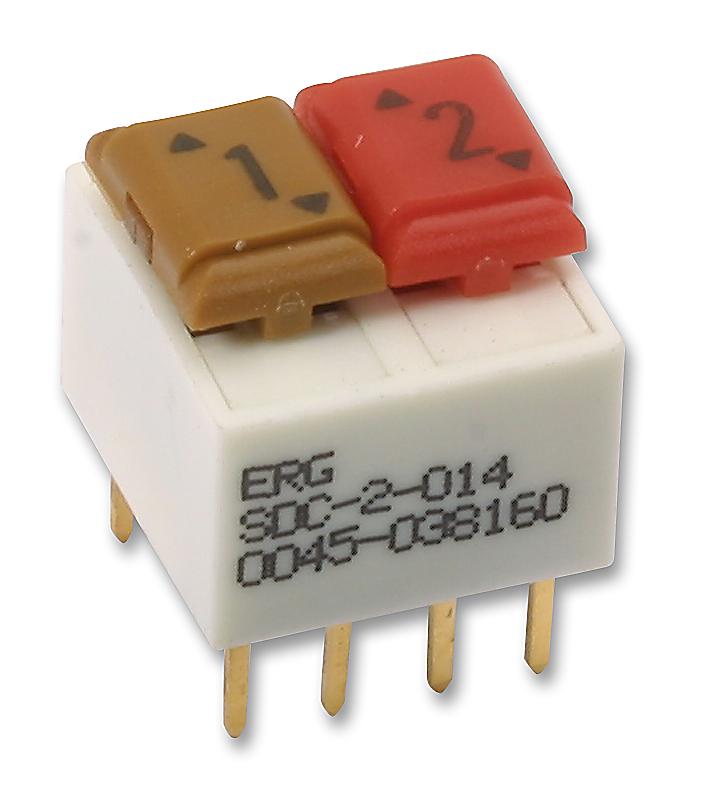

SDC-2-014 Switch, Dil, DT, 2WAY Erg Components
Actie prijs€29,94
Op voorraad, 699 producten
MULTICOMP PRO
MCATE-1-V Switch, Card Detect, Top Actuated multicomp Pro
Actie prijs€1,65
Op voorraad, 188 producten
ERG COMPONENTS
SDS-2-023 Switch, Dil, ST, 2WAY Erg Components
Actie prijs€16,54
Op voorraad, 794 producten
C&K COMPONENTS
ET07MD1CBE Switch, Pcb, SPDT, Ctr Off C&K Components
Actie prijs€17,92
Op voorraad, 113 producten
C&K COMPONENTS
EP12SD1AVBE Switch, SPDT, HORIZ C&K Components
Actie prijs€15,04
Op voorraad, 662 producten
ERG COMPONENTS

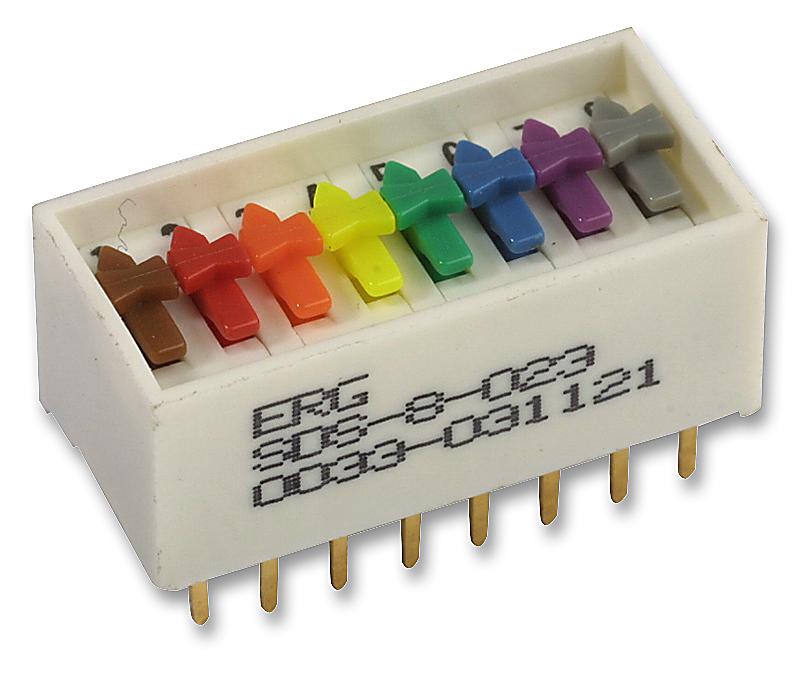

SDS-8-023 Switch, Dil, ST, 8WAY Erg Components
