SER2011-202MLD INDUCTOR, 2UH, 40A, 20%, PWR, 56MHZ COILCRAFT

COILCRAFTSKU:SER2011-202MLD Bestelcode:2288868

Prijs:
Actie prijs€7,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (400 units)

Documenten en downloads

Omschrijving

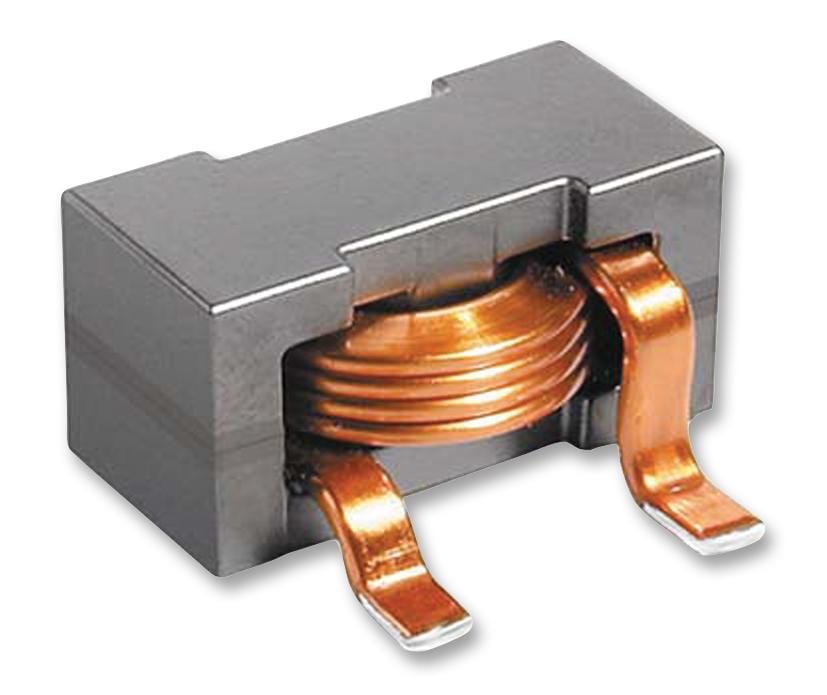

COILCRAFT - SER2011-202MLD - Power Inductor (SMD), 2 µH, 40 A, Shielded, 37 A, SER2000, 19.18mm x 9.27mm x 10.67mm

  • Inductance: 2µH
  • RMS Current (Irms): 40A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 37A
  • Product Range: SER2000 Series
  • Power Inductor Case: 19.18mm x 9.27mm x 10.67mm
  • DC Resistance Max: 0.00134ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 56MHz
